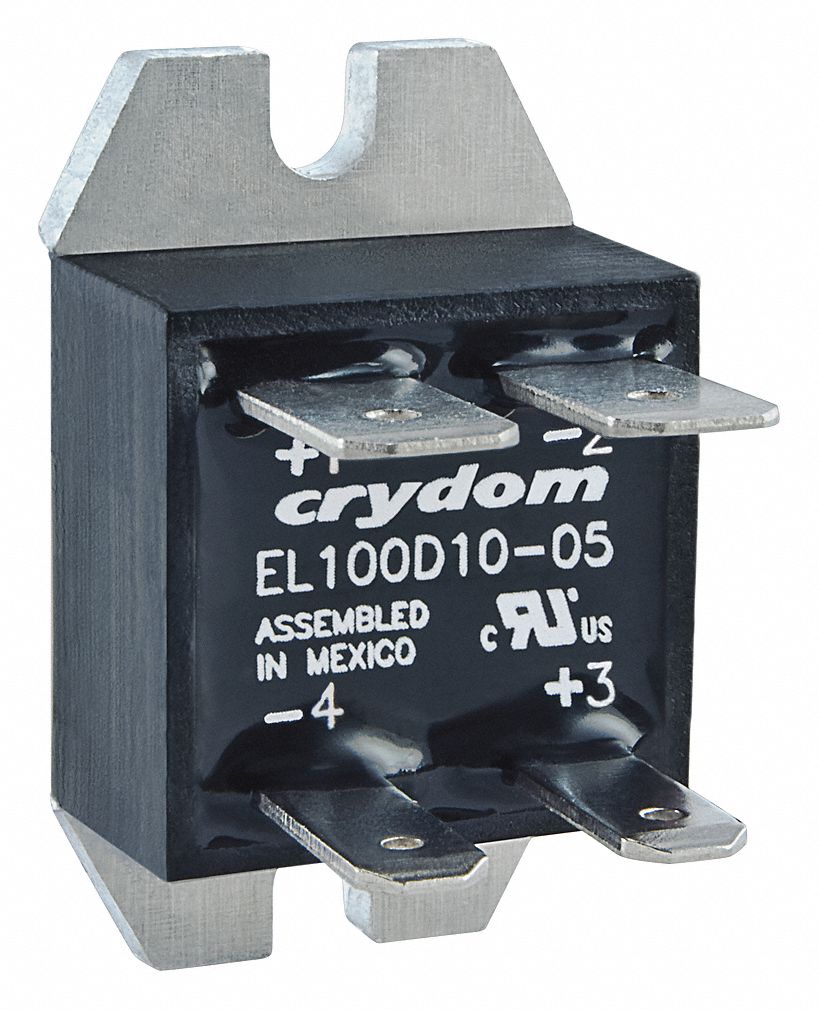

Crydom 3G-OTH-37855 — Spesifikasi Teknis
The CRYDOM Solid State Relay is a panel-mounted, surface-mounted relay with a DC output. It features a Form A switch configuration, an output voltage range of 3 to 100V DC, and a maximum output current without heat sink of 9 A. The relay has an input current of 27 mA and uses a quick-connect electrical connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | MOSFET, DC Output |
| Brand | CRYDOM |
| Finger Safe | No |
| Current Type | DC |
| Input Current | 27 mA |
| Mounting Style | Panel |
| Output Voltage | 3 to 100V DC |
| Max Output Current | 10 A |
| Switch Configuration | Form A |
| Voltage/Current Type | DC Output |
| Electrical Connection | Quick-Connect |
| Manufacturer Part Number | EL100D10-05 |
| Maximum Output Current Without Heat Sink | 9 A |
