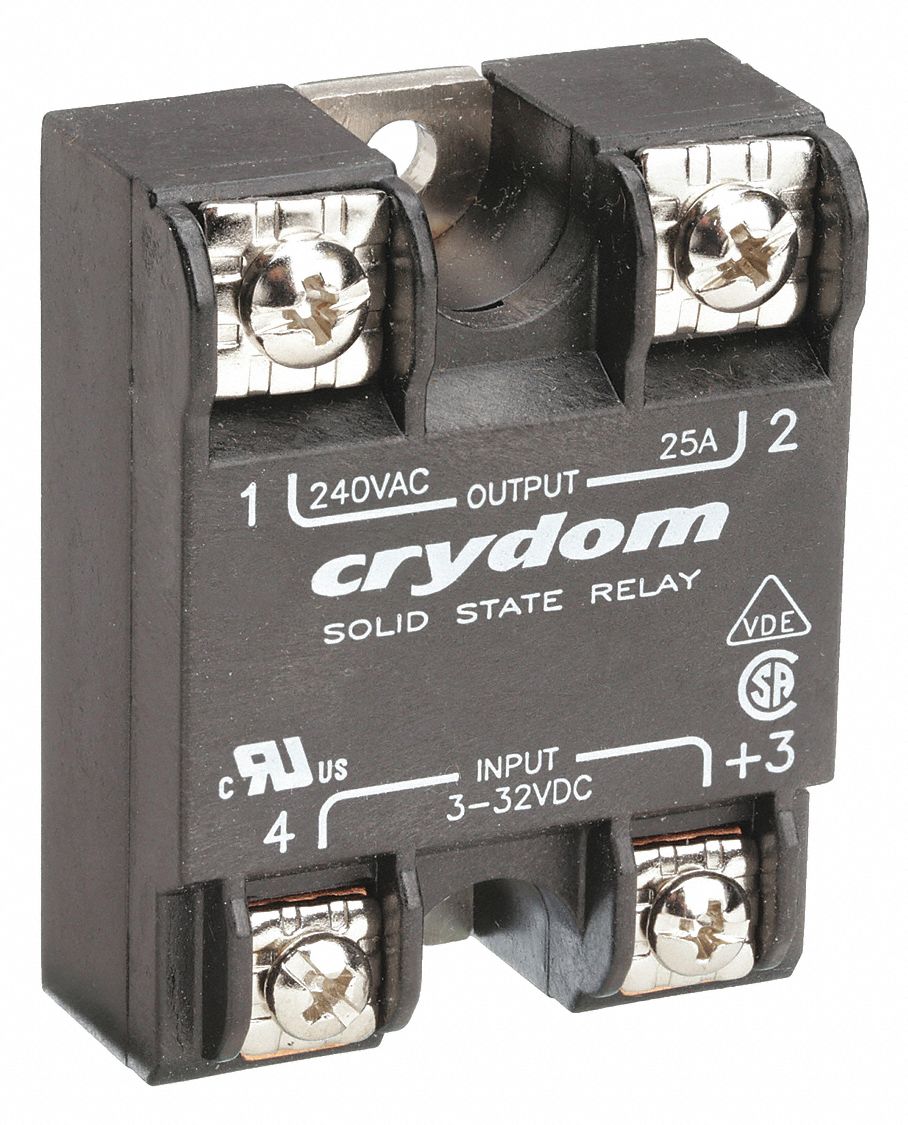

Crydom 3G-OTH-37614 — Spesifikasi Teknis

Name: Crydom 3G-OTH-37614 CRYDOM Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR, AC Output (MPN D2425). Key specifications — Brand: CRYDOM; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 12 mA; Maximum Output Current without Heat Sink: 16 A; Mounting Style: Panel; Output Voltage: 24 to 280V AC.
Brand: Crydom

The CRYDOM D2425 is a panel-mounted, surface-mounted solid-state relay with an AC output, SCR output, and a Form A switch configuration. It operates with an input current of 12 mA and an output voltage range of 24 to 280V AC, with a maximum output current of 16 A without a heat sink. The relay features a screw clamp electrical connection and is not finger-safe.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	AC
Input Current	12 mA
Mounting Style	Panel
Output Voltage	24 to 280V AC
Max Output Current	25 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	D2425
Maximum Output Current Without Heat Sink	16 A
