Crydom 3G-OTH-38326 — Spesifikasi Teknis

Name: Crydom 3G-OTH-38326 CRYDOM Solid State Relay: Surface Mounted, 50 A Max Output Current, SCR, AC Output (MPN HD4850). Key specifications — Brand: CRYDOM; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 12 mA; Maximum Output Current without Heat Sink: 12 A; Mounting Style: Panel; Output Voltage: 48 to 530V AC.
Brand: Crydom

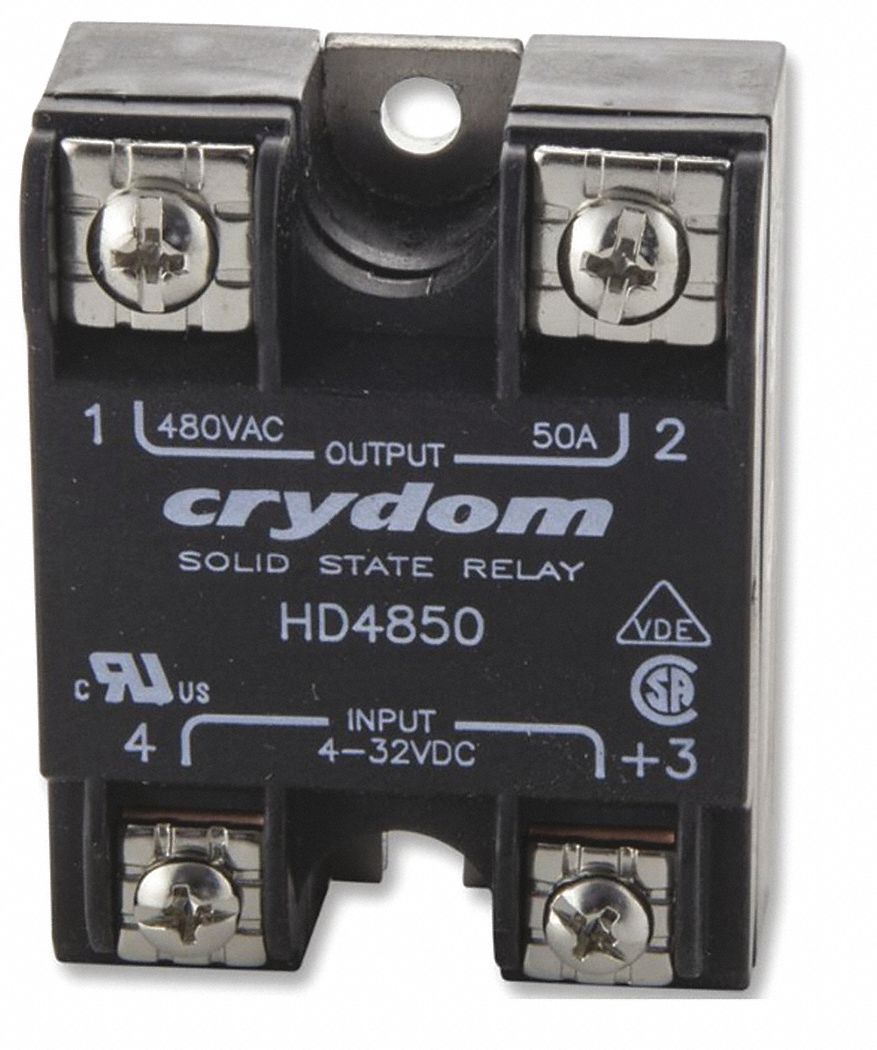

The CRYDOM HD4850 is a panel-mounted solid-state relay with a screw-clamp electrical connection, providing an AC output across a voltage range of 48 to 530V AC. It features a Form A switch configuration, an input current of 12 mA, and a maximum output current without a heat sink of 12 A. This surface-mounted relay is not finger-safe and is designed for AC current applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	AC
Input Current	12 mA
Mounting Style	Panel
Output Voltage	48 to 530V AC
Max Output Current	50 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	HD4850
Maximum Output Current Without Heat Sink	12 A
