Crydom 3G-OTH-38810 — Spesifikasi Teknis

Name: Crydom 3G-OTH-38810 CRYDOM Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR, AC Output (MPN HA4825). Key specifications — Brand: CRYDOM; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 10 mA; Maximum Output Current without Heat Sink: 12 A; Mounting Style: Panel; Output Voltage: 48 to 530V AC.
Brand: Crydom

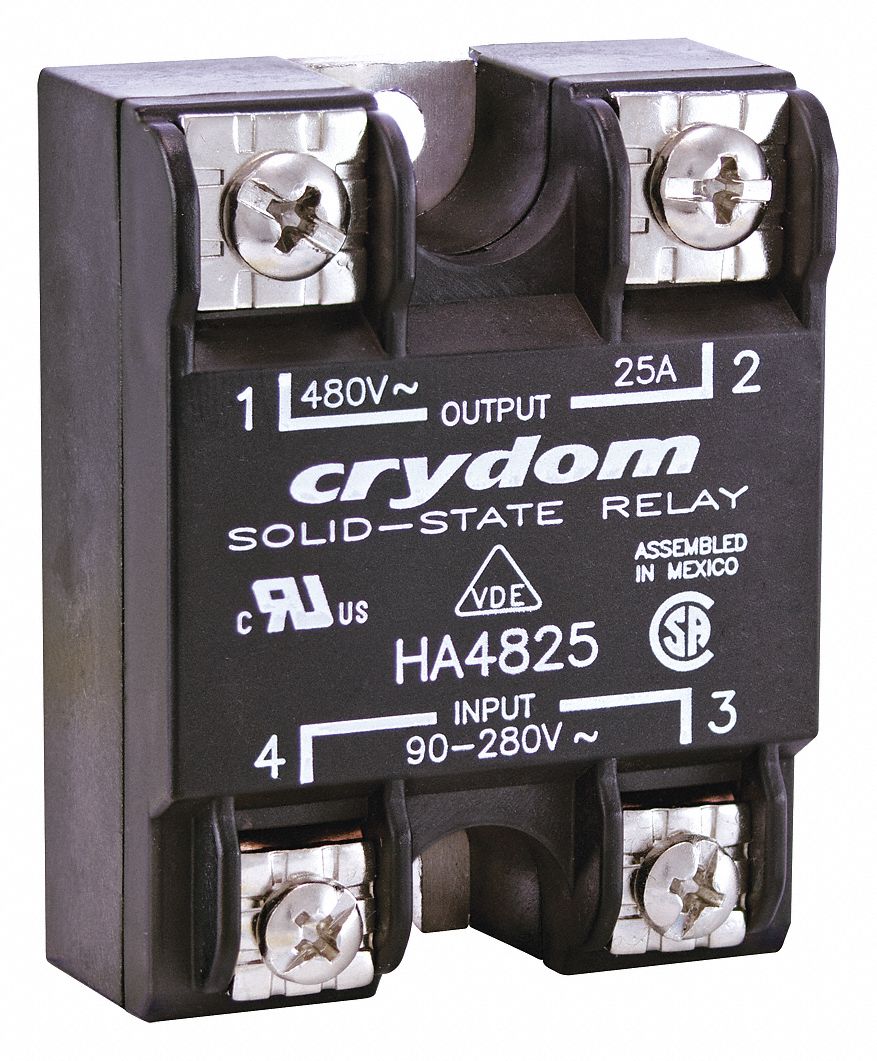

The CRYDOM HA4825 is a panel-mounted, surface-mounted solid-state relay with an AC output, SCR output, and Form A switch configuration. It operates with an input current of 10 mA and an output voltage range of 48 to 530V AC, with a maximum output current of 25 A (12 A without a heat sink). The relay features screw clamp electrical connections and is not finger-safe.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	AC
Input Current	10 mA
Mounting Style	Panel
Output Voltage	48 to 530V AC
Max Output Current	25 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	HA4825
Maximum Output Current Without Heat Sink	12 A
