Crydom 3G-OTH-38848 — Spesifikasi Teknis

Name: Crydom 3G-OTH-38848 CRYDOM Solid State Relay: Surface Mounted, 75 A Max Output Current, SCR, AC Output (MPN HA4875). Key specifications — Brand: CRYDOM; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 10 mA; Maximum Output Current without Heat Sink: Not Recommended; Mounting Style: Panel; Output Voltage: 48 to 530V AC.
Brand: Crydom

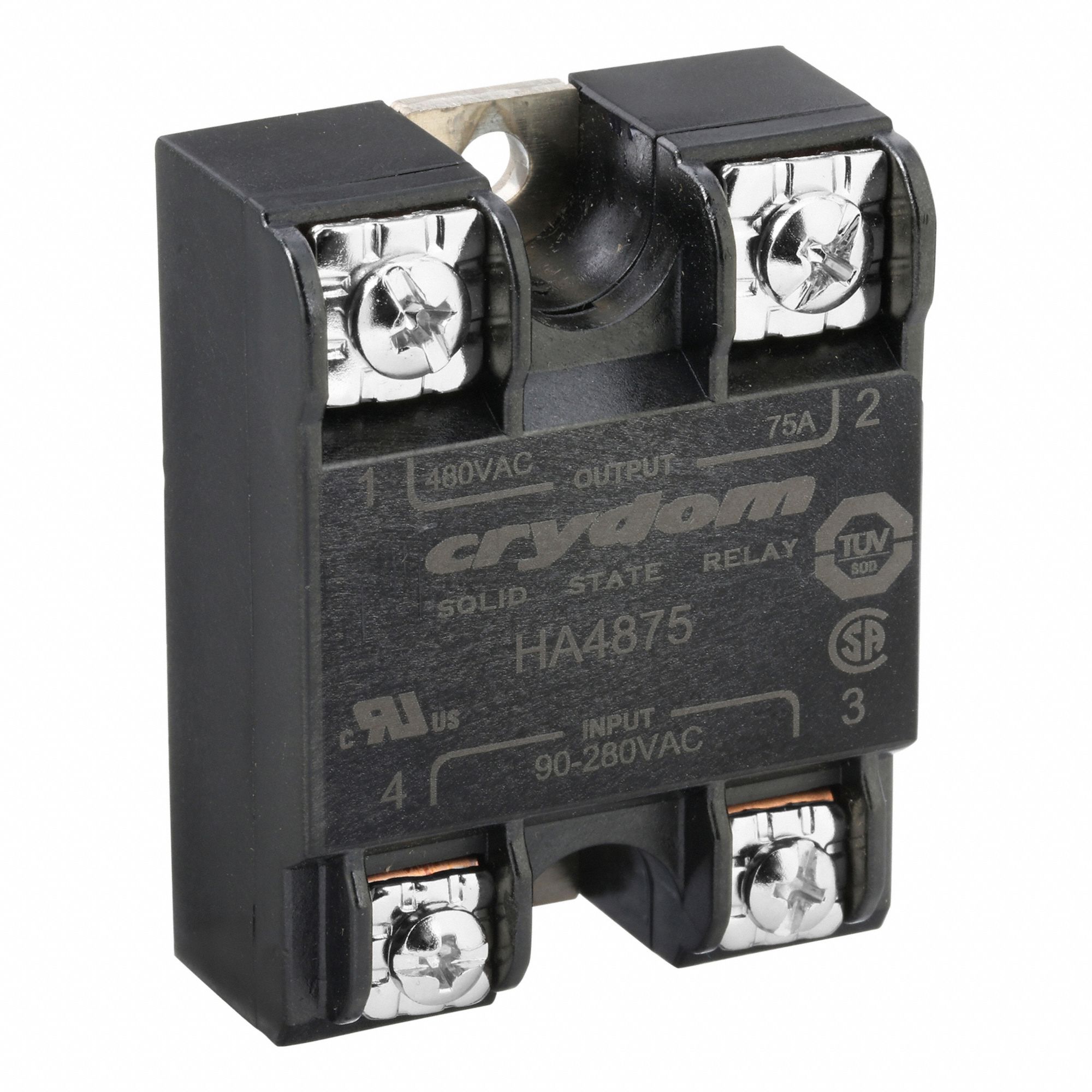

The CRYDOM Solid State Relay (MPN HA4875) is a panel-mounted, AC-output relay with a Form A switch configuration and screw-clamp electrical connection. It operates with an input current of 10 mA and an output voltage range of 48 to 530V AC. The relay is not finger-safe and is not recommended for use without a heat sink.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	AC
Input Current	10 mA
Mounting Style	Panel
Output Voltage	48 to 530V AC
Max Output Current	75 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	HA4875
Maximum Output Current Without Heat Sink	Not Recommended
