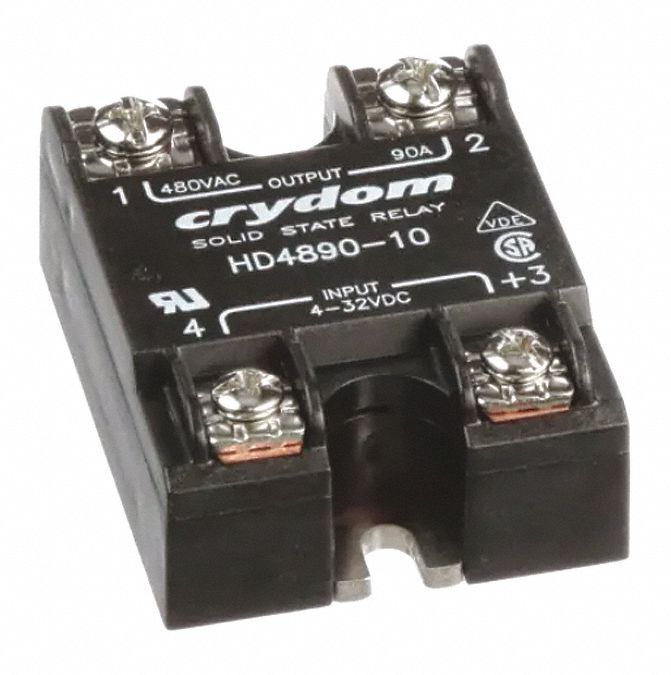

Crydom 3G-OTH-38366 — Spesifikasi Teknis

Name: Crydom 3G-OTH-38366 CRYDOM Solid State Relay: Surface Mounted, 90 A Max Output Current, SCR, AC Output (MPN HD4890-10). Key specifications — Brand: CRYDOM; Current Type: AC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 12 mA; Maximum Output Current without Heat Sink: Not Recommended; Mounting Style: Panel; Output Voltage: 48 to 530V AC.
Brand: Crydom

The CRYDOM Solid State Relay is a panel-mounted, surface-mounted relay with an AC output. It features a Form A switch configuration, an output voltage range of 48 to 530V AC, and a maximum output current of 90 A. The relay uses an SCR output, requires a 12 mA input current, and connects via screw clamps. It is not finger-safe and is not recommended for use without a heat sink.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	AC
Input Current	12 mA
Mounting Style	Panel
Output Voltage	48 to 530V AC
Max Output Current	90 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	HD4890-10
Maximum Output Current Without Heat Sink	Not Recommended
