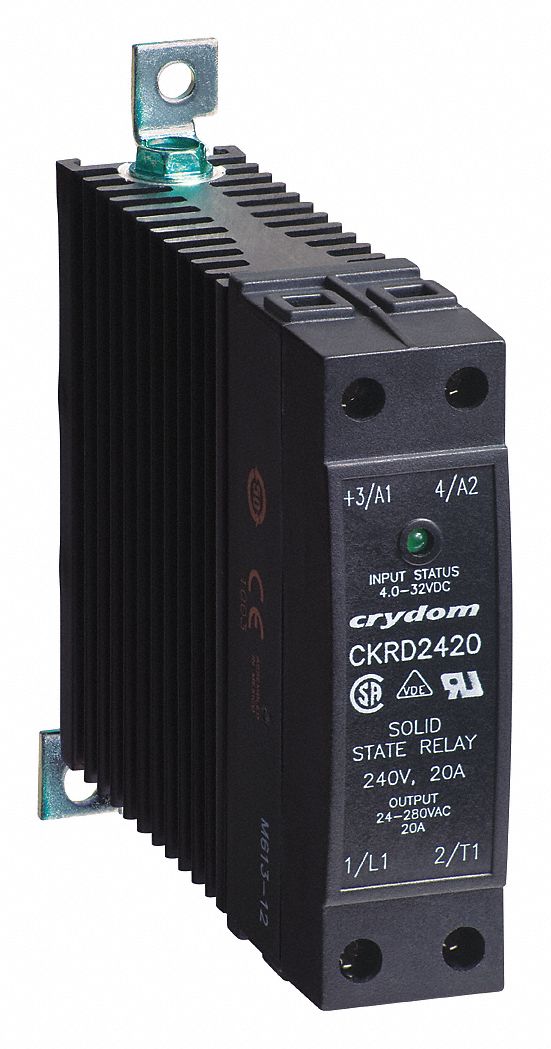

Crydom 3G-OTH-36677 — Spesifikasi Teknis

Name: Crydom 3G-OTH-36677 CRYDOM Solid State Relay: DIN-Rail Mounted, 20 A Max Output Current, SCR, AC Output (MPN CKRD2420). Key specifications — Brand: CRYDOM; Current Type: DC; Electrical Connection: Box Clamp; Finger Safe: Yes; Input Current: 8 to 12 mA; Maximum Output Current without Heat Sink: 20 A; Mounting Style: DIN Rail; Output Voltage: 24 to 280V AC.
Brand: Crydom

The CRYDOM Solid State Relay is a DIN-Rail Mounted relay with a Form A (SPST-NO) switch configuration and SCR output. It accepts a DC input current of 8 to 12 mA and switches an AC output voltage of 24 to 280V AC. This finger-safe relay features a box-clamp electrical connection and delivers a maximum output current of 20 A without a heat sink.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	Yes
Current Type	DC
Input Current	8 to 12 mA
Mounting Style	DIN Rail
Output Voltage	24 to 280V AC
Max Output Current	20 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Box Clamp
Manufacturer Part Number	CKRD2420
Maximum Output Current Without Heat Sink	20 A
