Crydom 3G-OTH-36755 — Spesifikasi Teknis

Name: Crydom 3G-OTH-36755 CRYDOM Solid State Relay: DIN-Rail Mounted, 65 A Max Output Current, SCR, AC Output (MPN CMRD4865). Key specifications — Brand: CRYDOM; Current Type: DC; Electrical Connection: Cage Type; Finger Safe: Yes; Input Current: 30 mA; Maximum Output Current without Heat Sink: 65 A; Mounting Style: DIN Rail; Output Voltage: 48 to 530V AC.
Brand: Crydom

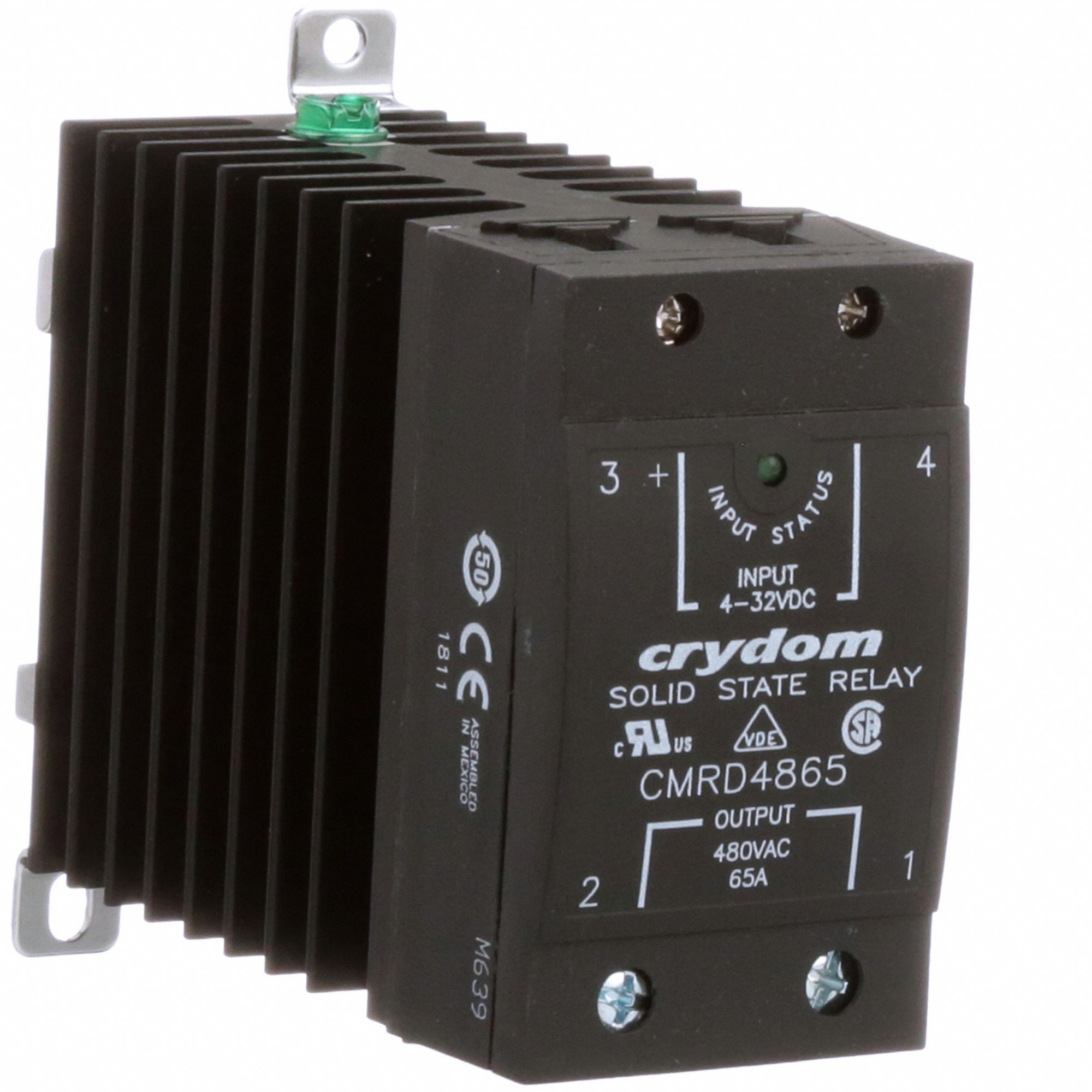

The CRYDOM Solid State Relay is a DIN-Rail Mounted relay with a Form A switch configuration and SCR output. It features a DC input current of 30 mA and an AC output voltage range of 48 to 530V AC, with a maximum output current of 65 A without a heat sink. The relay is finger safe and uses a cage-type electrical connection.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	Yes
Current Type	DC
Input Current	30 mA
Mounting Style	DIN Rail
Output Voltage	48 to 530V AC
Max Output Current	65 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Cage Type
Manufacturer Part Number	CMRD4865
Maximum Output Current Without Heat Sink	65 A
