Crydom 3G-OTH-38049 — Spesifikasi Teknis

Name: Crydom 3G-OTH-38049 CRYDOM Solid State Relay: DIN-Rail & Surface Mounted, 10 A Max Output Current, MOSFET, DC Output (MPN CKM0610). Key specifications — Brand: CRYDOM; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 11 mA at 32V DC; 9 mA at 5V DC; Maximum Output Current without Heat Sink: 10 A; Mounting Style: DIN Rail & Panel.
Brand: Crydom

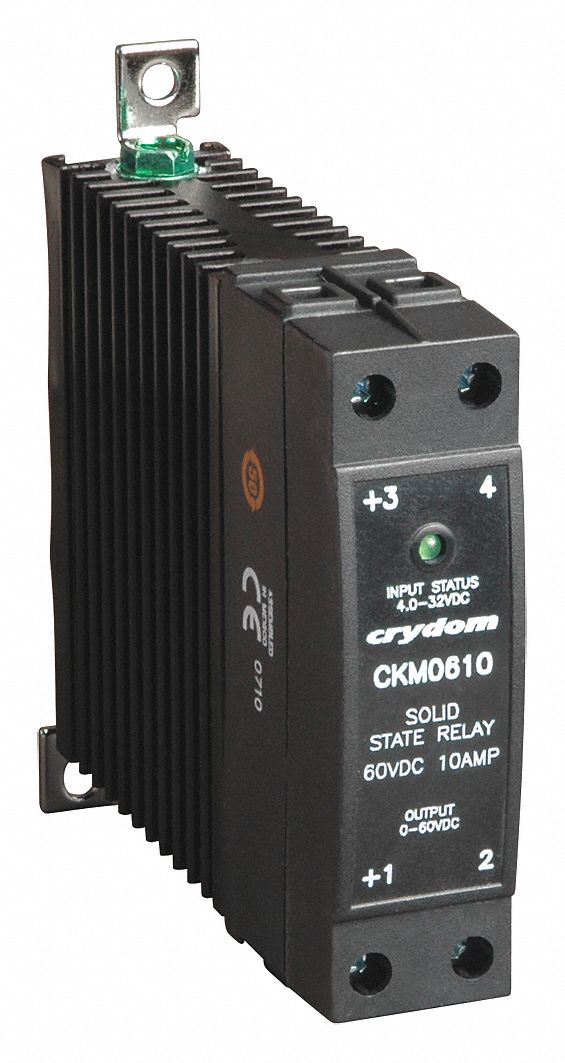

The CRYDOM Solid State Relay (MPN CKM0610) is a combination DIN-rail and surface-mounted relay with a DC output. It features a Form A switch configuration, an output voltage range of 0 to 60V DC, and a maximum output current of 10 A without a heat sink. The relay accepts an input current of 11 mA at 32V DC, uses a screw clamp electrical connection, and is finger safe.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	MOSFET, DC Output
Brand	CRYDOM
Finger Safe	Yes
Current Type	DC
Input Current	11 mA at 32V DC
Mounting Style	DIN Rail & Panel
Output Voltage	0 to 60V DC
Max Output Current	10 A
Switch Configuration	Form A
Voltage/Current Type	DC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	CKM0610
Maximum Output Current Without Heat Sink	10 A
