Dayton 3G-OTH-80500 — Spesifikasi Teknis

Name: Dayton 3G-OTH-80500 Panel Exhaust Fan: Direct Drive, 12 in Blade, 1/4 hp, 1,347 cfm, 208-230/460V AC, 3 ph (MPN 10D996). Key specifications — Frame Finish: Zinc Plated; Assembled: Assembled; Brand: DAYTON; Nameplate Voltage: 208-230/460V AC; Frame Material: Steel; Hazardous Location Class: Class I, Div 1, Group C and D; Class II, Div 1, Group F and G; Guard Type: None.
Brand: Dayton

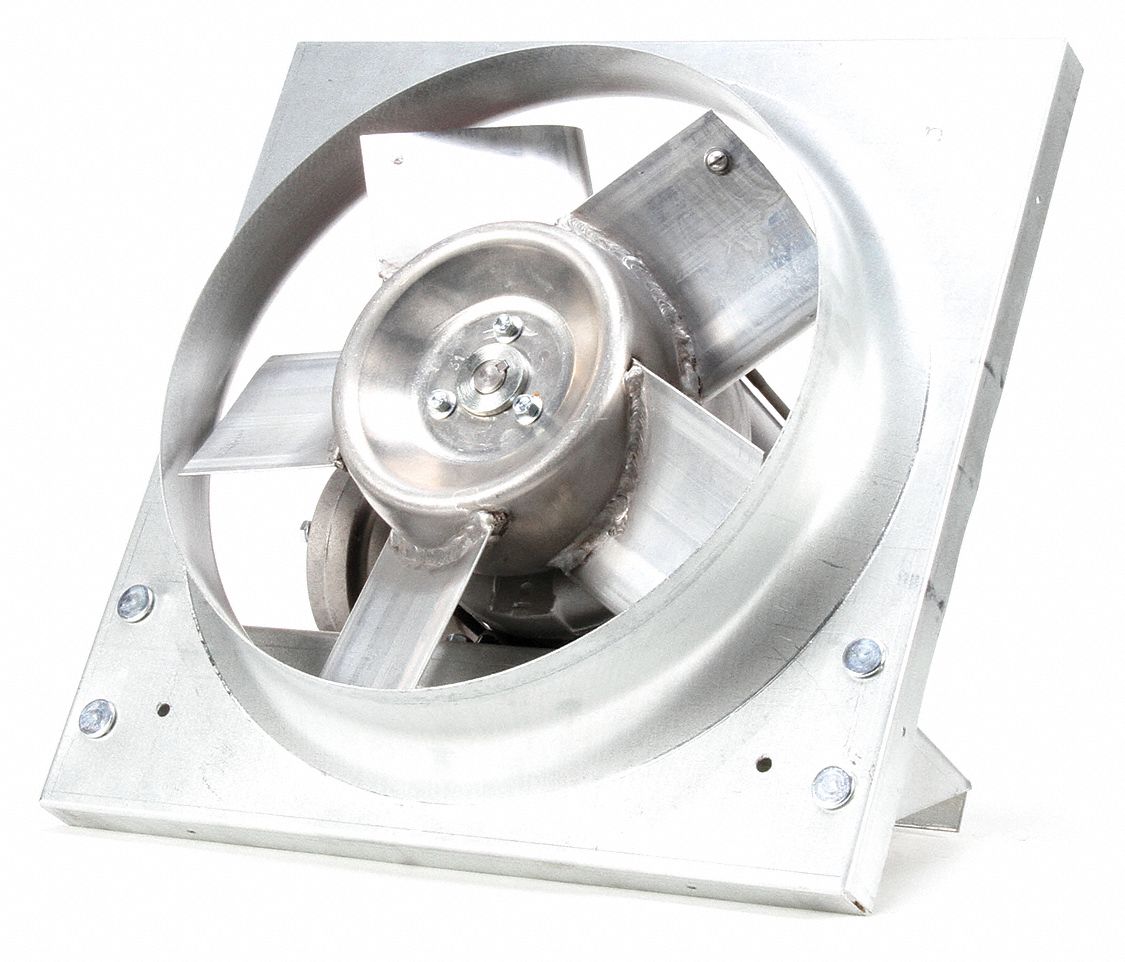

The Dayton 10D996 is a hazardous location direct-drive panel exhaust fan with a 12-inch blade, 1/4 hp, and 1,347 cfm. It operates on 208-230/460V AC, 3-phase power with a single-speed, totally enclosed fan-cooled motor. The unit is assembled with a zinc-plated steel frame and is rated for Class I, Div 1, Groups C and D, and Class II, Div 1, Groups F and G hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	208-230/460V
Type	1/4 hp, 1,347 cfm, 3 ph
Blade	12 in
Brand	DAYTON
Assembled	Assembled
Guard Type	None
Motor Type	3-Phase
Frame Finish	Zinc Plated
Frame Material	Steel
Motor Enclosure	Totally Enclosed Fan Cooled
Enclosure Design	Totally Enclosed Motor
Motor Insulation	Class B
Number Of Speeds	1
Nameplate Voltage	208-230/460V AC
Guard Type Subheads	Without Intake Guards
Method Of Construction	Stamped
Hazardous Location Class	Class I, Div 1, Group C and D
Manufacturer Part Number	10D996
