Dayton 3G-OTH-78724 — Spesifikasi Teknis

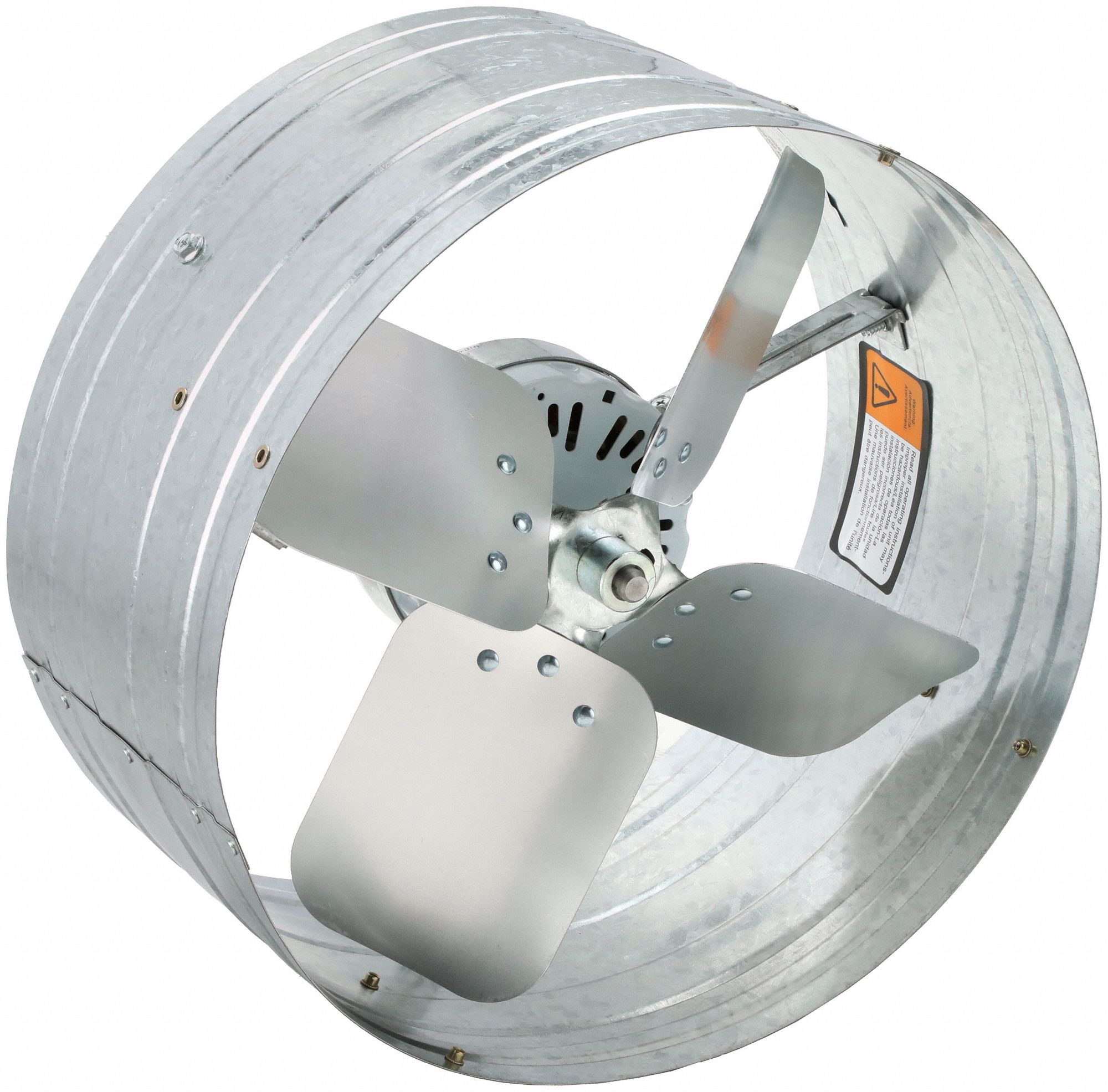

The DAYTON 10W194 is a gable-mount attic exhaust fan with a standard-efficiency motor, rated for 120V AC and 3.15 A. It delivers exhaust airflow in the 1,500 to 2,000 cfm range at 0.000 in SP and includes a metal housing made of galvanized steel. The fan features temperature control via an included thermostat, but does not include a humidistat, shutter, or fire safety shut-off.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Max. | 1,650 cfm |
| Type | Electric Motor, Max. 2,300 sq ft Attic, Thermostat |
| Brand | DAYTON |
| Current | 3.15 A |
| Features | Temperature Control |
| Includes | Metal Housing |
| Dome Material | Galvanized Steel |
| Includes Shutter | No |
| Mounting Location | Gable |
| Nameplate Voltage | 120V AC |
| Includes Humidistat | No |
| Includes Thermostat | Yes |
| Fire Safety Shut-Off | No |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 10W194 |
| Power Source/High-Efficiency Motors | Standard-Efficiency Motor |
| Exhaust Airflow @ 0.000 In SP - Range | 1,500 to 2,000 cfm |
| For High-Static Pressure Applications | No |
