Dayton 3G-OTH-112455 — Spesifikasi Teknis

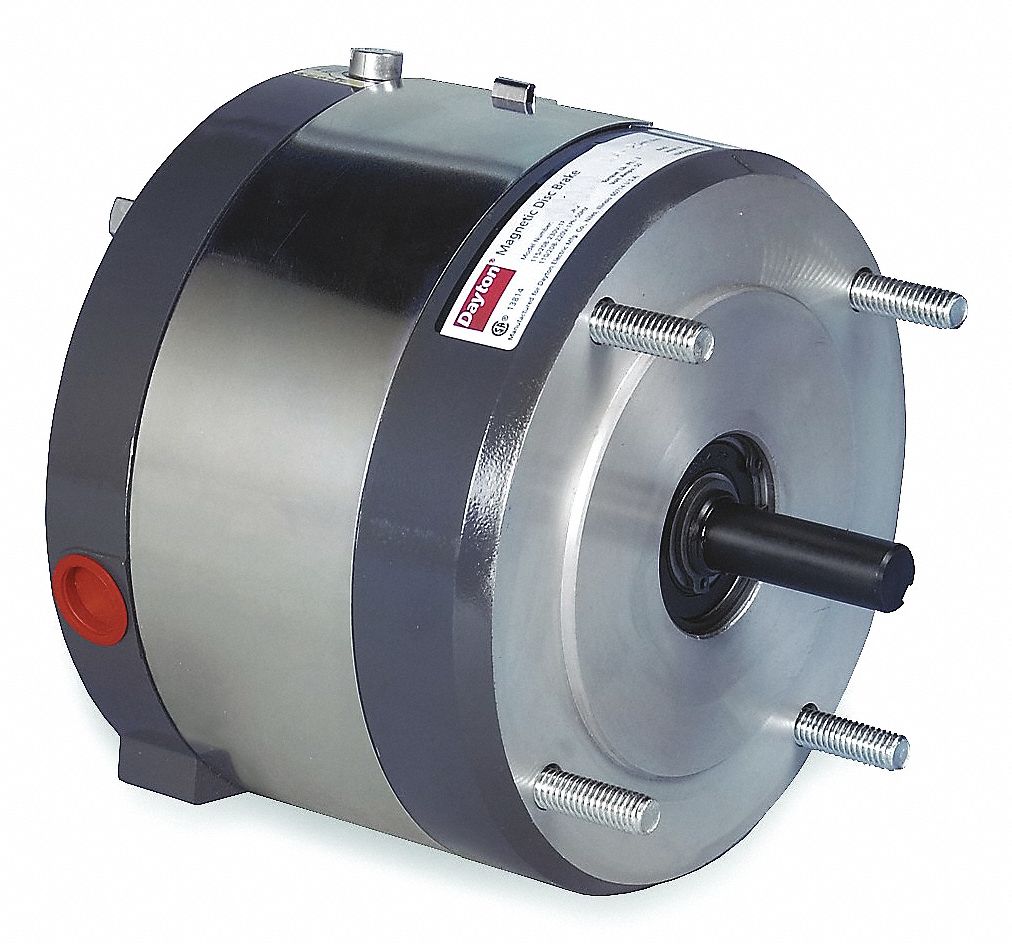

The DAYTON Double C-Face Magnetic Disc Brake (SKU 2LYV1) is a washdown brake designed for use with single and three phase BISSC and stainless steel C-Face motors in food washdown applications. It features a totally enclosed enclosure type, mounts on NEMA C-Face flanges on motors and gear reducers, and is rated for 3 hp @ 1725 RPM with a 56C/140TC NEMA motor frame designation. The brake operates as a double C-Face magnetic disc brake and includes hardware.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 208-230/460V |
| NEMA | 56C/140TC |
| Type | Totally Enclosed |
| Brand | DAYTON |
| Includes | Hardware |
| For Use With | Single and Three Phase BISSC and Stainless Steel C-Face Motors Used in Food Washdown Applications |
| Enclosure Type | Totally Enclosed |
| Horsepower @ RPM | 3 hp @ 1725 RPM |
| Clutch/Brake Type | Double C-Face Magnetic Disc Brake |
| Mounting Location | NEMA C-Face Flanges on Motors and Gear Reducers |
| Motor Frame Designation | 56C/140TC NEMA |
| Manufacturer Part Number | 2LYV1 |
