Dayton 3G-OTH-94020 — Spesifikasi Teknis

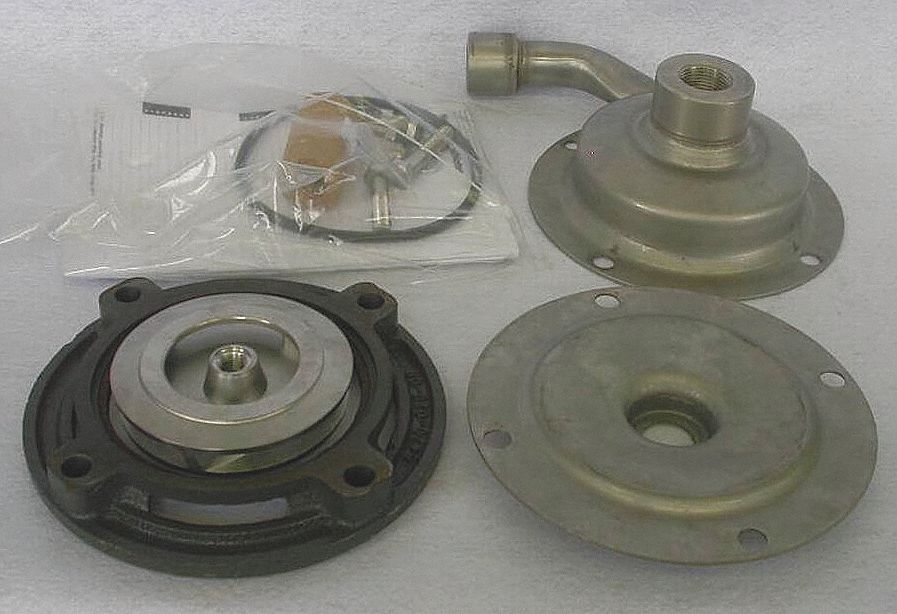

The DAYTON Straight Centrifugal Pump Head (SKU 4JMY1) features a closed impeller and a volute, housing, and impeller all constructed from 304 Stainless Steel. It is designed for a 56J NEMA compatible motor frame and offers a discharge rotation of 360° at 90° increments. This pump head supports a maximum horsepower of 1/3 hp at 60 Hz frequency.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Freq | 60 Hz |
| NEMA | 56J |
| Brand | DAYTON |
| Impeller Design | Closed |
| Max. Horsepower | 1/3 hp |
| Volute Material | 304 Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Impeller Material | 304 Stainless Steel |
| Discharge Rotation | 360° at 90° Increments |
| Compatible Motor Frame | 56J NEMA |
| Manufacturer Part Number | 4JMY1 |
