Dayton 3G-OTH-40913 — Spesifikasi Teknis

Name: Dayton 3G-OTH-40913 DAYTON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 23 A – 32 A (MPN 6EAZ7). Key specifications — Brand: DAYTON; Auxiliary Contact Form: 1NO/1NC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Dayton (40 to 95 Amp Models).
Brand: Dayton

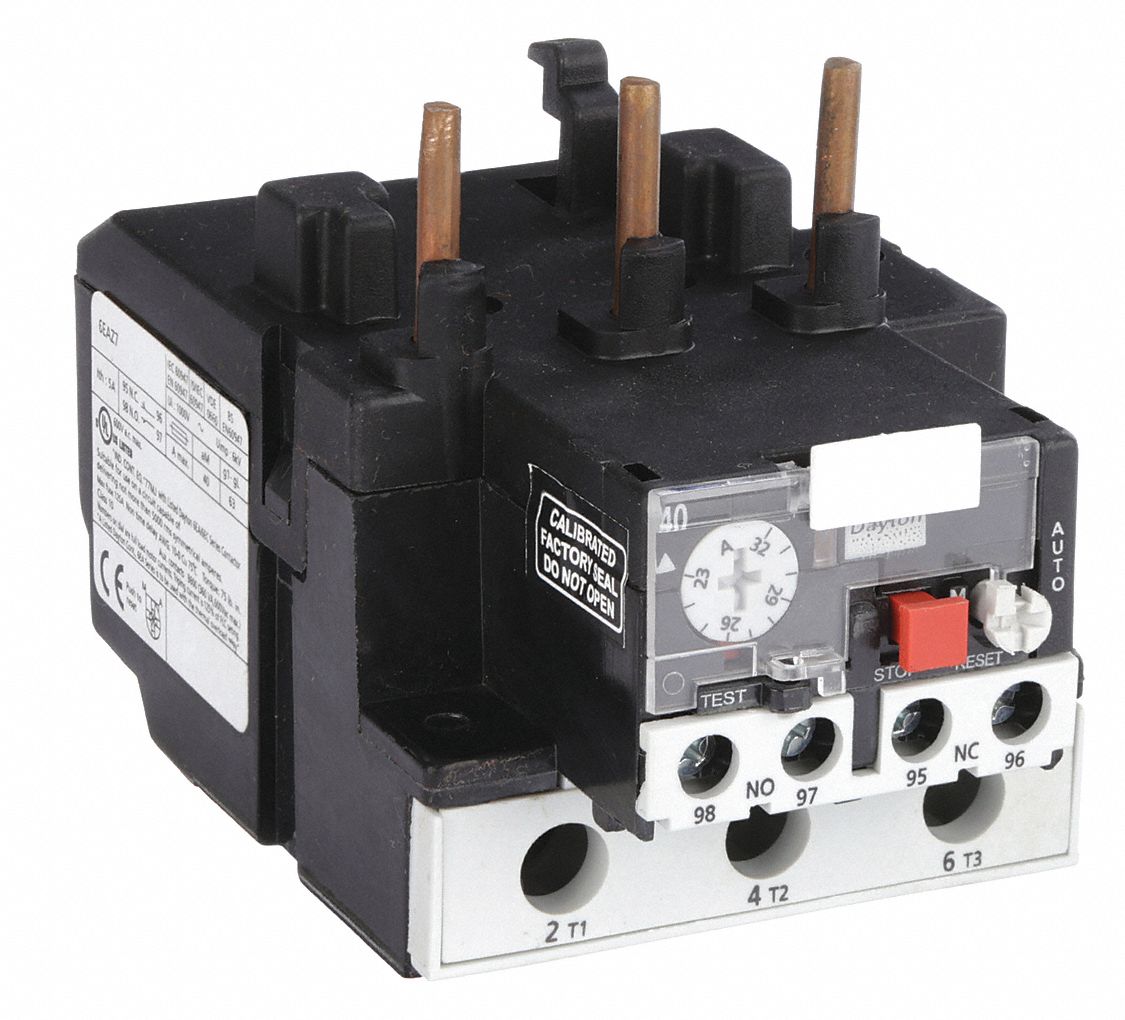

The DAYTON Overload Relay (MPN 6EAZ7) is a three-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors rated 40 to 95 Amps. The relay is adjustable for motor protection from 23 A to 32 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1NO/1NC, Phase Loss Sensitivity, 23 A – 32 A
Brand	DAYTON
Poles	3
Compatible Contactors	Dayton (40 to 95 Amp Models)
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	6EAZ7
