Dayton 3G-OTH-39425 — Spesifikasi Teknis

Name: Dayton 3G-OTH-39425 DAYTON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, 0.4 A – 0.63 A (MPN 6ECA6). Key specifications — Brand: DAYTON; Auxiliary Contact Form: 1NO/1NC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Dayton (9 to 18 Amp Models).
Brand: Dayton

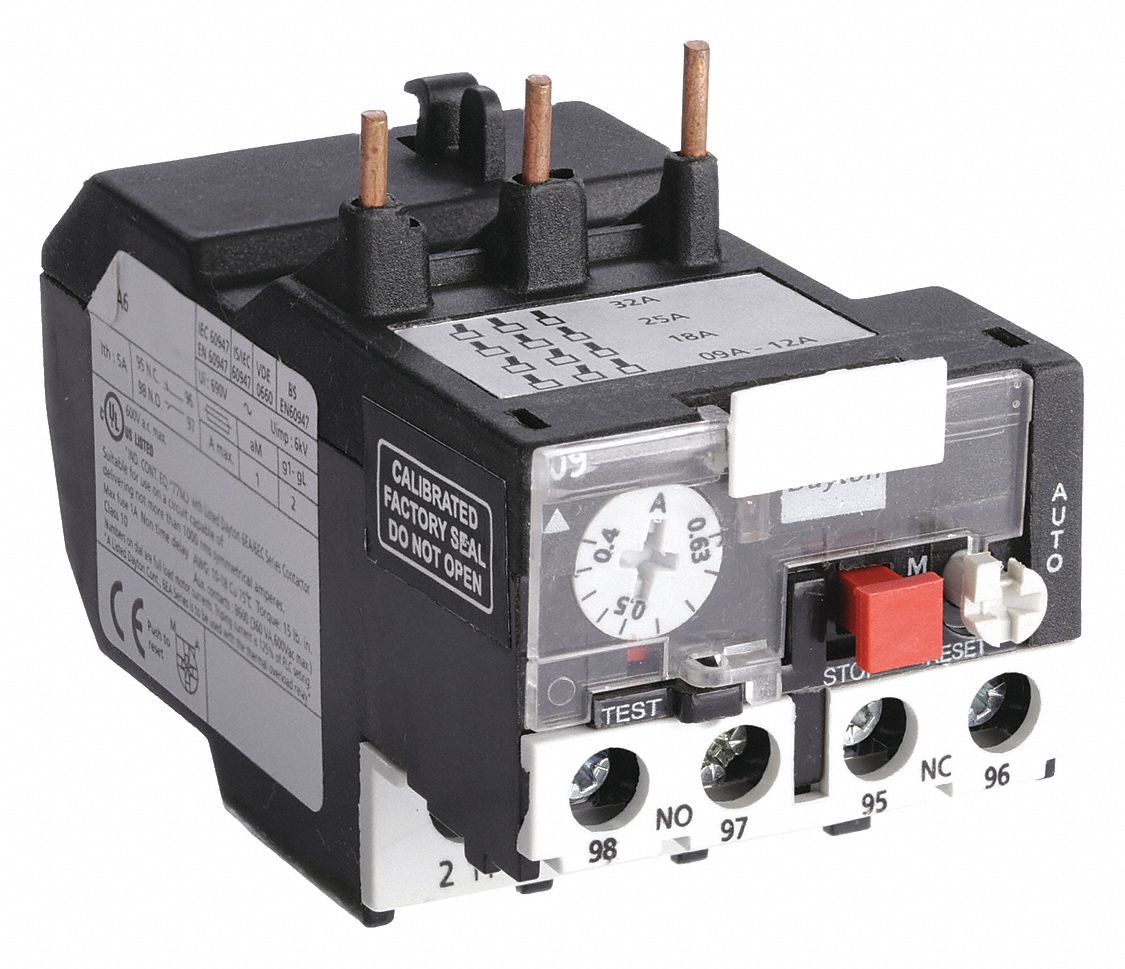

The DAYTON Overload Relay is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts and phase loss sensitivity, and is compatible with Dayton contactors in the 9 to 18 Amp models. The relay covers a current range of 0.4 A to 0.63 A and has 3 poles.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1NO/1NC, Phase Loss Sensitivity, 0.4 A – 0.63 A
Brand	DAYTON
Poles	3
Compatible Contactors	Dayton (9 to 18 Amp Models)
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	6ECA6
