Dayton 3G-OTH-81775 — Spesifikasi Teknis

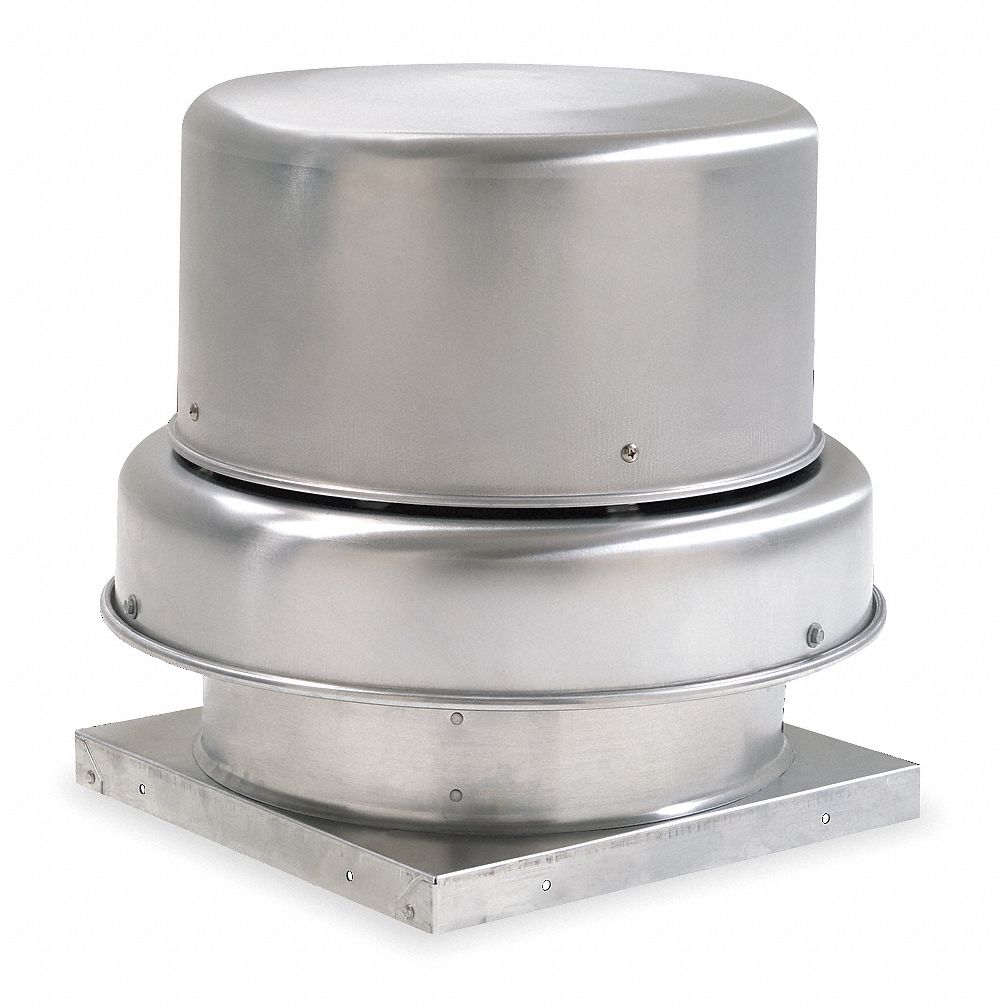

The DAYTON Centrifugal Downblast Roof Exhaust Fan (MPN 7AF00) is a flammable vapor belt-drive fan with drive, featuring a 24 1/2 in wheel and 4,223 cfm exhaust airflow. It is unassembled, includes a drive package, and is rated for hazardous locations: Class I Groups C & D, Class II Groups E & F. The fan has a totally enclosed nonventilated motor enclosure, standard-efficiency motors, and a single-speed 115/208-230V AC nameplate voltage.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Includes Drive Pack, 4,223 cfm |
| Brand | DAYTON |
| Wheel | 24 1/2 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AF00 |
| Hazardous Location Rating | Class I Groups C & D, Class II Groups E & F |
| Hazardous Location Specification | Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group F |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | No |
