Dayton 3G-OTH-81346 — Spesifikasi Teknis

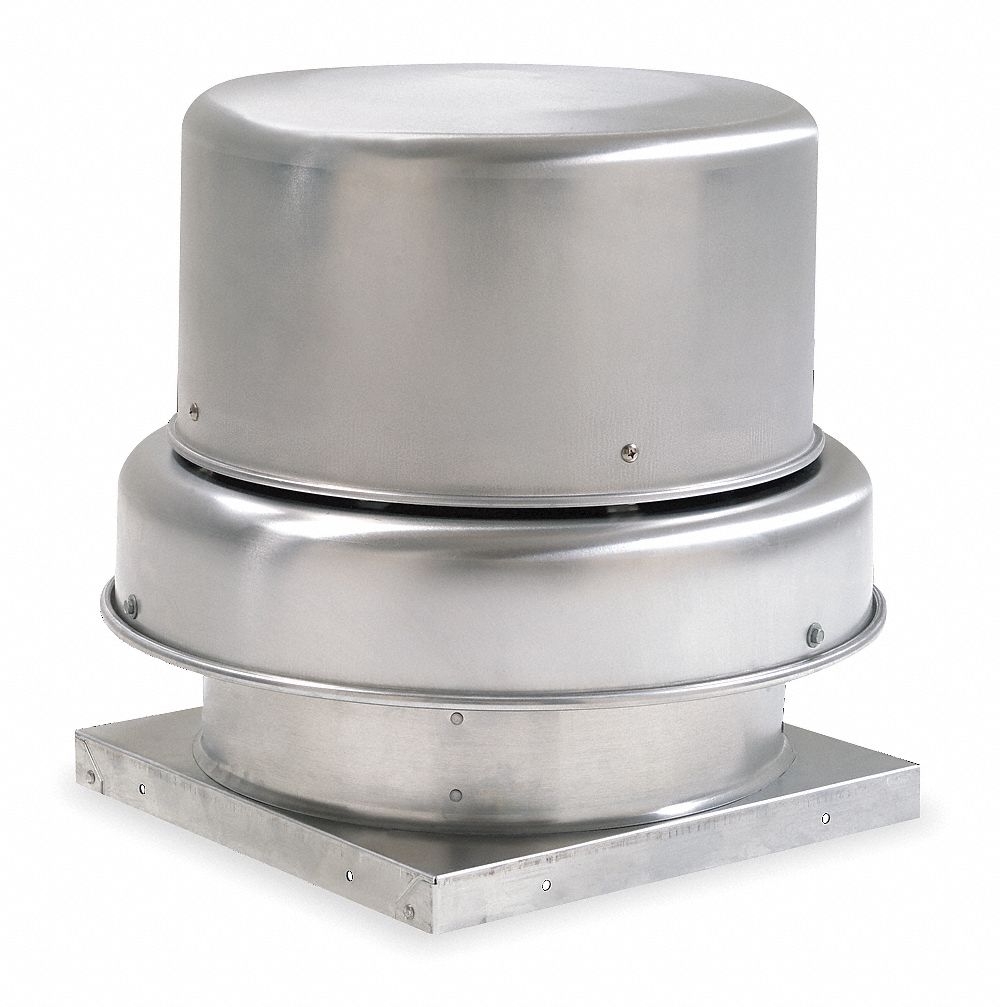

The Dayton Centrifugal Downblast Roof Exhaust Fan is a flammable vapor belt-drive fan with drive, model 7AF10. It features a 14 3/4 in wheel, delivers 2,170 cfm, and operates on 230/460V AC with a totally enclosed nonventilated motor. This unassembled unit is rated for hazardous locations including Class I Groups C & D and Class II Groups E, F & G, and is designed for roof mounting.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Includes Drive Pack, 2,170 cfm |
| Brand | DAYTON |
| Wheel | 14 3/4 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AF10 |
| Hazardous Location Rating | Class I Groups C & D, Class II Groups E, F & G |
| Hazardous Location Specification | Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group G |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 0 to 1,999 cfm |
| For High-Static Pressure Applications | No |
