Dayton 3G-OTH-81403 — Spesifikasi Teknis

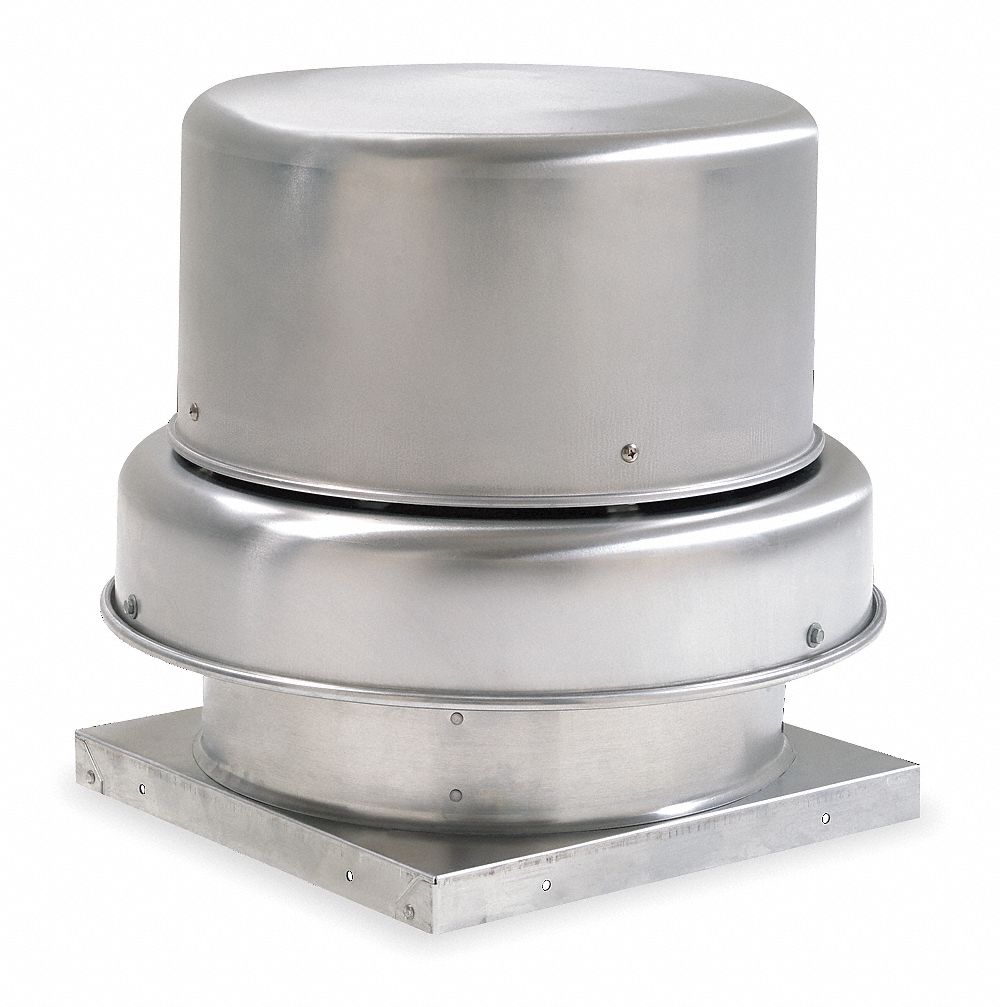

The Dayton Centrifugal Downblast Roof Exhaust Fan is a flammable vapor belt-drive fan with drive, model 7AF11, featuring a 16 3/4 in wheel and 2,791 cfm exhaust airflow. It is unassembled with a square base, includes a drive package, and is powered by a standard-efficiency, totally enclosed nonventilated motor at 230/460V AC single speed. This roof-mounted unit carries a hazardous location rating of Class I Groups C & D and Class II Groups E, F & G.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Includes Drive Pack, 2,791 cfm |
| Brand | DAYTON |
| Wheel | 16 3/4 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 230/460V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AF11 |
| Hazardous Location Rating | Class I Groups C & D, Class II Groups E, F & G |
| Hazardous Location Specification | Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group G |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | No |
