Dayton 3G-OTH-81499 — Spesifikasi Teknis

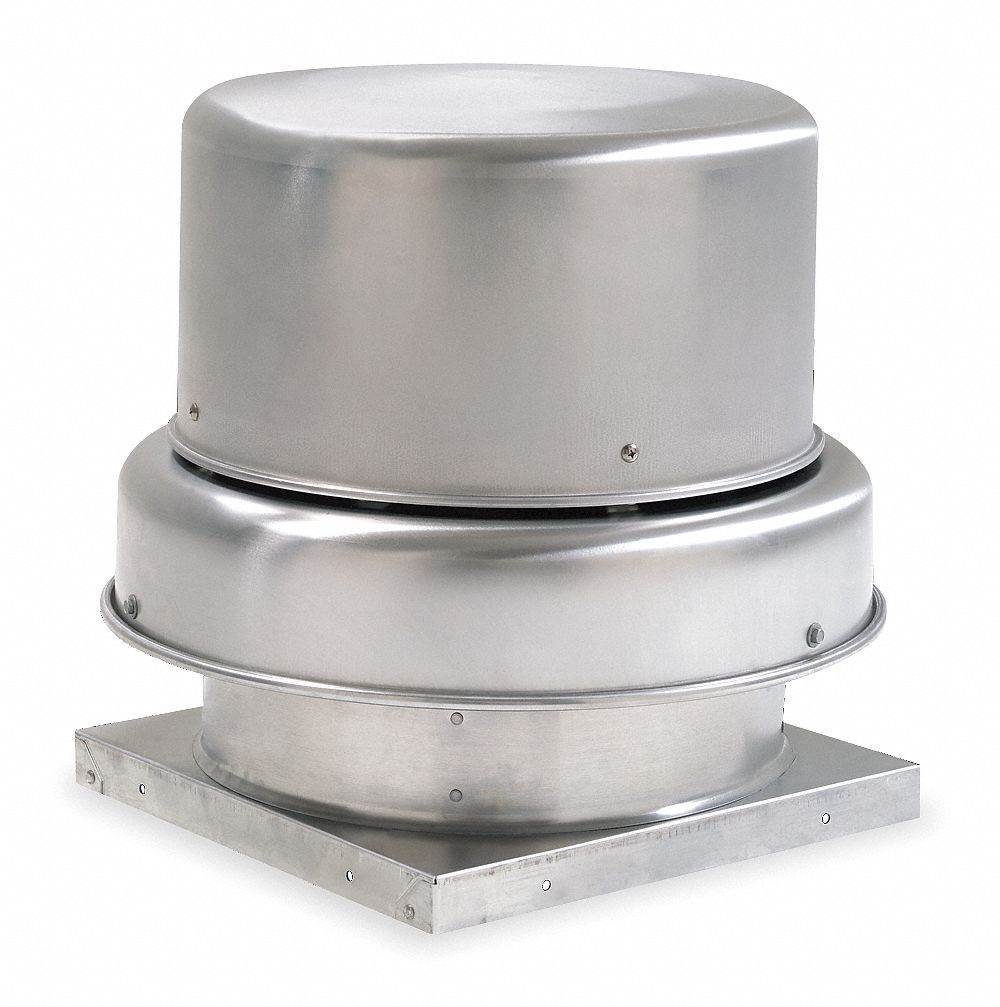

The Dayton Centrifugal Downblast Roof Exhaust Fan (SKU 7AF15) is a flammable vapor belt-drive fan with drive, featuring a belt drive and a square base. It is rated for hazardous locations including Class I Groups C & D and Class II Groups E, F & G, with a totally enclosed fan cooled motor and a nameplate voltage of 208-230/460V AC. The fan delivers exhaust airflow ranges of 2,000 to 4,999 cfm at both 0.000 in SP and 0.500 in SP, and is unassembled with standard-efficiency motors.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Includes Drive Pack, 4,608 cfm |
| Brand | DAYTON |
| Wheel | 18 1/2 in |
| Assembly | Unassembled |
| Base Shape | Square |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Efficiency | Standard-Efficiency Motors |
| Number Of Speeds | 1 |
| Mounting Location | Roof |
| Nameplate Voltage | 208-230/460V AC |
| High-Efficiency Motor | No |
| Manufacturer Part Number | 7AF15 |
| Hazardous Location Rating | Class I Groups C & D, Class II Groups E, F & G |
| Hazardous Location Specification | Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group G |
| Exhaust Airflow @ 0.000 In SP - Range | 2,000 to 4,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 2,000 to 4,999 cfm |
| For High-Static Pressure Applications | No |
