Dwyer 3G-OTH-92686 — Spesifikasi Teknis

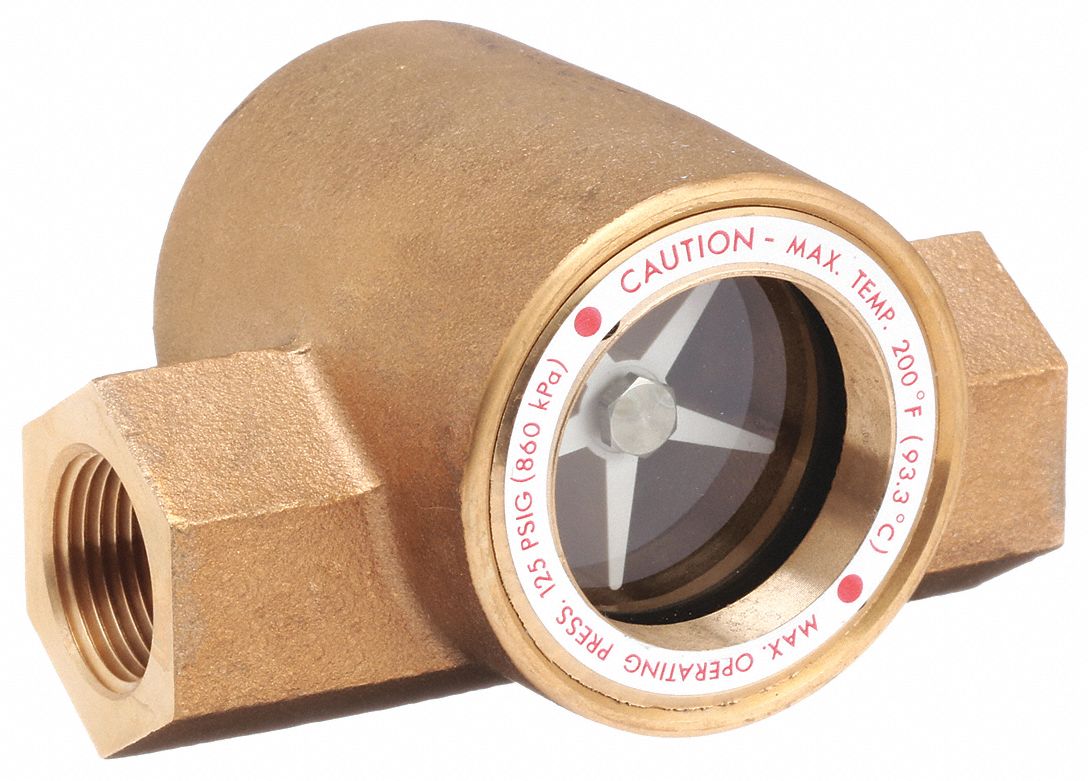

The DWYER Window Sight Flow Indicator with Impeller: Rotor (Model SFI-300-1-1/2) is a flow sight designed for hydraulic oils. It features a 1 1/2 inch FNPT connection, a tempered glass sight, and a Buna-N seal, with wetted components made of 316 stainless steel. This unit is intended for vertical up flow direction only.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 1 1/2 in |
| Type | Bronze, FNPT, Tempered Glass |
| Brand | DWYER |
| Seal Material | Buna-N |
| Flow Direction | Vertical Up |
| For Media Type | Hydraulic Oils |
| Sight Material | Tempered Glass |
| Connection Type | FNPT |
| Wetted Material | 316 Stainless Steel |
| Manufacturer Part Number | SFI-300-1-1/2 |
