Dwyer 3G-OTH-174088 — Spesifikasi Teknis

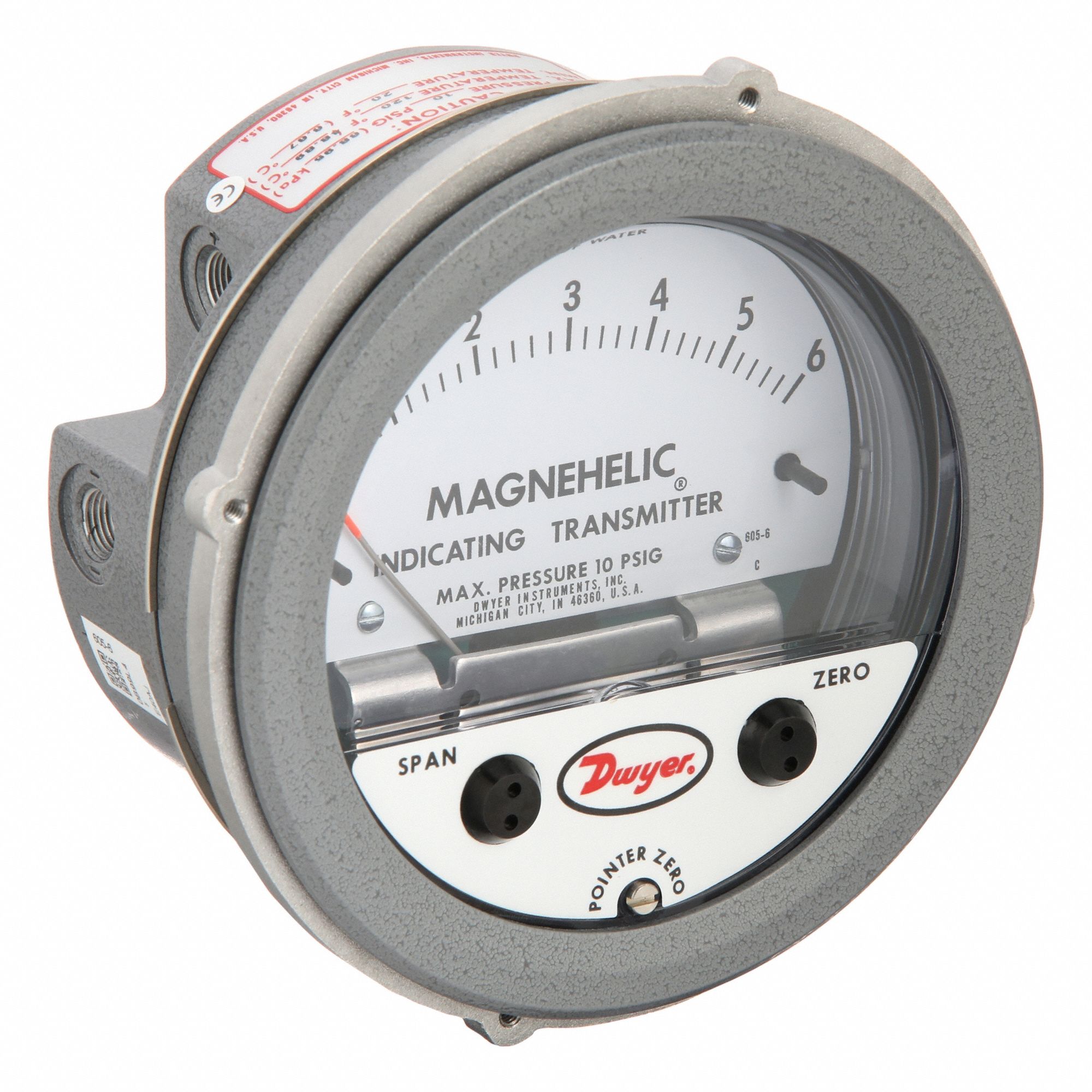

The Dwyer Series 605 Indicating Transmitter (MPN 605-6) is a differential pressure transmitter with a dial display, offering a pressure range of 0 in wc to 6 in wc. It provides a 4 to 20mA output with an electrical accuracy of ±0.5% and a mechanical accuracy of ±2%. The unit features a female NPT process connection and a terminal block for wiring.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Dia | 5 in |
| Type | 0 in wc to 6 in wc, Terminal Block, 605, 4 to 20mA |
| Brand | DWYER |
| Series | 605 |
| Accuracy | ±0.5% (Electrical) |
| IP Rating | Not Rated |
| Display Type | Dial |
| Output Power | 4 to 20mA |
| Indicator Type | Analog / Dial |
| Pressure Range | 0 in wc to 6 in wc |
| NEMA Enclosure Rating | Not Rated |
| Process Connection Type | NPT |
| Manufacturer Part Number | 605-6 |
| Process Connection Gender | Female |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
