Dwyer 3G-OTH-88595 — Spesifikasi Teknis

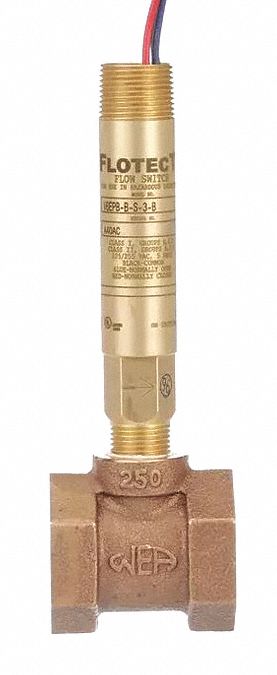

The Dwyer V6EPB-B-S-1-B is an insertion-style hazardous-location paddle flow switch for liquids, designed for 1/2-inch pipe sizes. It features a brass body with a 1/2-inch NPT connection and SPDT switching, rated for AC contacts at 5 A @ 125/250V (MT Option) and DC contacts at 3 A (Inductive) @ 30V (CSA, ATEX and IECEx Models). This switch carries a hazardous location rating of Class II, Div 1 and 2, Group E, F, G.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| NPT | 1/2 in |
| Type | 1/2 in/1/4 in/2 in/3/8 in For Pipe Size, Brass, NPT, SPDT |
| Brand | DWYER |
| For Pipe Size | 1/2 in |
| Contact Rating (AC) | 5 A @ 125/250V (MT Option) |
| Contact Rating (DC) | 3 A (Inductive) @ 30V (CSA, ATEX and IECEx Models) |
| Manufacturer Part Number | V6EPB-B-S-1-B |
| Hazardous Location Rating | Class II, Div 1 and 2, Group E, F, G |
