Dwyer 3G-OTH-176453 — Spesifikasi Teknis

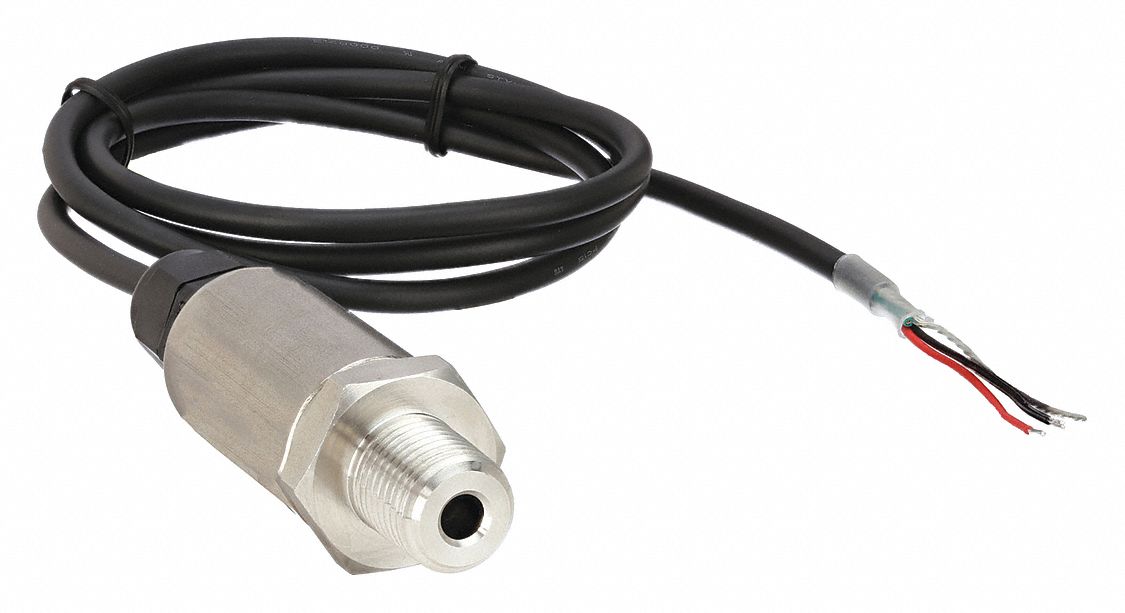

The Dwyer Series 626 Pressure Transmitter (SKU 2HLR4) is a stainless-steel pressure transmitter with cable and wire leads, offering a 0 psi to 30 psi range and a 4 to 20mA DC output. It features an accuracy of ±0.25%, an IP66 and NEMA 4X rating, and an overpressure capability of 300 psig. The unit includes a 1/4 in male NPT process connection and a 3 ft cable length, with no NIST-traceable calibration certificate included.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 4 to 20mA |
| Type | Cable, IP66 /4X |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Series | 626 |
| Accuracy | ±0.25% |
| Cable Lg | 3 ft |
| Male NPT | 1/4 in |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 300 psig |
| Housing Material | Stainless Steel |
| Electrical Connections | Cable |
| Process Connection Type | NPT |
| Manufacturer Part Number | 626-08-GH-P1-E1-S1 |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
