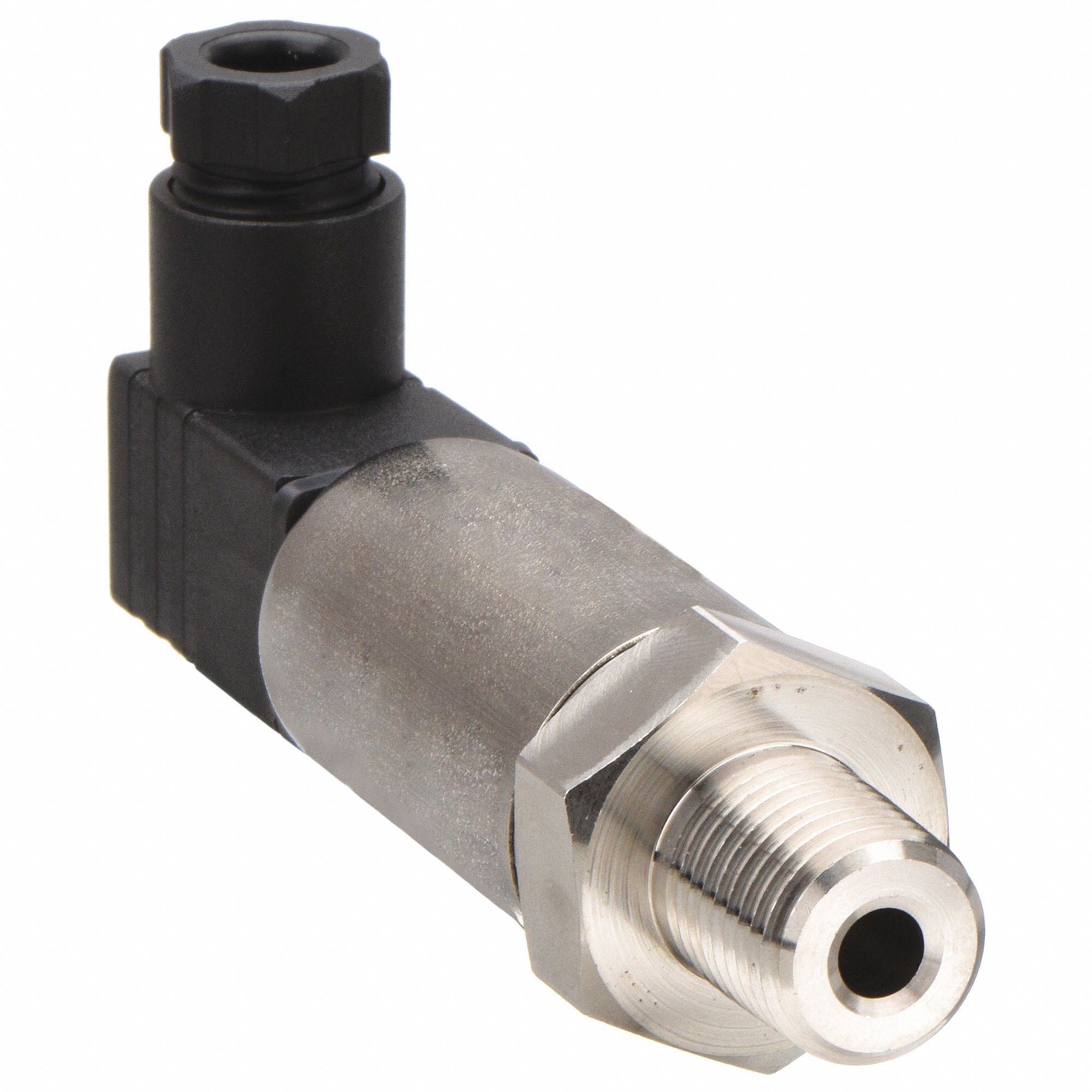

Dwyer 3G-OTH-177224 — Spesifikasi Teknis
The Dwyer Series 626 Pressure Transmitter (SKU 3DRJ5) is a 0 psi to 30 psi pressure transmitter with a 4-Pin DIN 43650 Form C Connector and a 4 to 20mA DC output. It features an accuracy of ±0.25%, an IP66 and NEMA 4X rating, a stainless steel housing, a 300 psig overpressure rating, and a male NPT process connection. No NIST-traceable calibration certificate is included.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 4 to 20mA |
| Type | 4-Pin DIN 43650 Form C Connector, IP66 /4X |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Series | 626 |
| Accuracy | ±0.25% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 300 psig |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | 626-08-GH-P1-E4-S1 |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
