Dwyer 3G-OTH-177233 — Spesifikasi Teknis

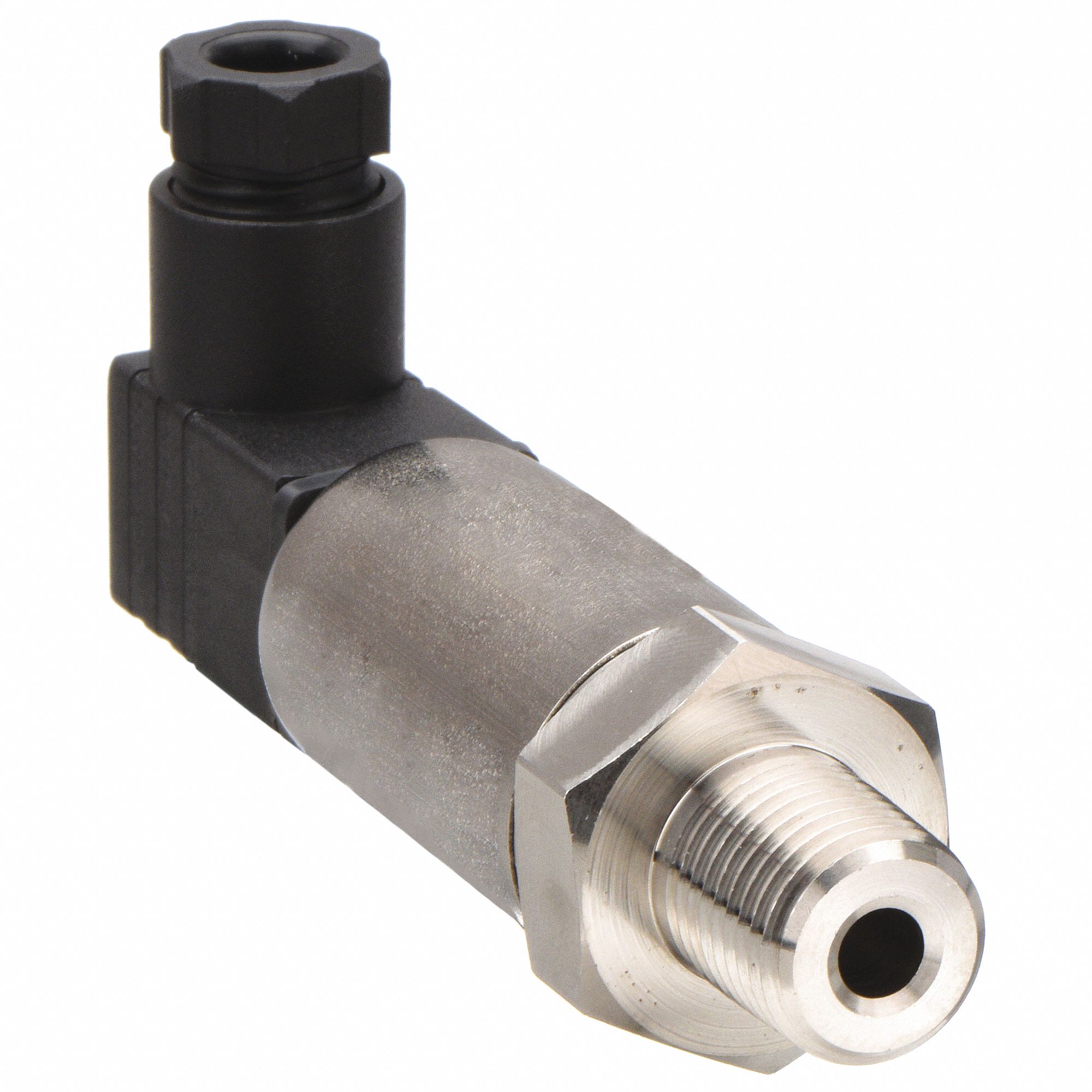

The Dwyer Series 628 Pressure Transmitter (MPN 628-09-GH-P1-E4-S1) is a 0 psi to 50 psi pressure transmitter with a 4 to 20mA DC output and a 4-Pin DIN 43650 Form C Connector. It features an accuracy of ±1%, an IP66 and NEMA 4X rating, a stainless steel housing, and an NPT process connection. The overpressure rating is 300 psig.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 4 to 20mA |
| Type | 4-Pin DIN 43650 Form C Connector, IP66 /4X |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Series | 628 |
| Accuracy | ±1% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 300 psig |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | 628-09-GH-P1-E4-S1 |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
