Dwyer 3G-OTH-89564 — Spesifikasi Teknis

Name: Dwyer 3G-OTH-89564 DWYER Liquid Flow Switch: Paddle, 1/2 in/1/4 in/2 in/3/8 in For Pipe Size, Brass, 1/2 in NPT, NPT (MPN V6EPB-B-D-1-MI). Key specifications — Brand: DWYER; Contact Rating (DC): 6 A (Inductive) @ 30V (CSA, ATEX and IECEx Models); For Pipe Size: 2 in; Hazardous Location Rating: Class I, Div 1 and 2, Group A, B, C, D; Contact Rating (AC): 5 A @ 125/250V.
Brand: Dwyer

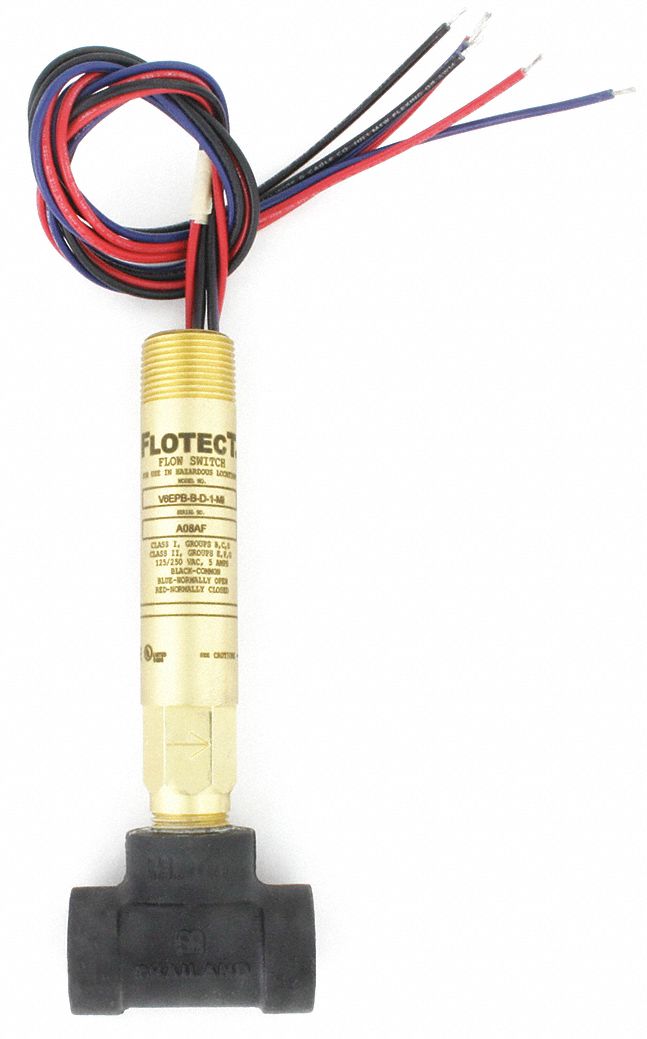

The DWYER V6EPB-B-D-1-MI is an inline hazardous-location paddle flow switch for liquids, rated for Class I, Divisions 1 and 2, Groups A, B, C, D. It is designed for 2-inch pipe size with a brass body and 1/2-inch NPT connection. The switch offers a 5 A @ 125/250V AC contact rating and a 6 A (Inductive) @ 30V DC contact rating for CSA, ATEX, and IECEx models.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
NPT	1/2 in
Type	1/2 in/1/4 in/2 in/3/8 in For Pipe Size, Brass, NPT
Brand	DWYER
For Pipe Size	2 in
Contact Rating (AC)	5 A @ 125/250V
Contact Rating (DC)	6 A (Inductive) @ 30V (CSA, ATEX and IECEx Models)
Manufacturer Part Number	V6EPB-B-D-1-MI
Hazardous Location Rating	Class I, Div 1 and 2, Group A, B, C, D
