Dwyer 3G-OTH-179168 — Spesifikasi Teknis

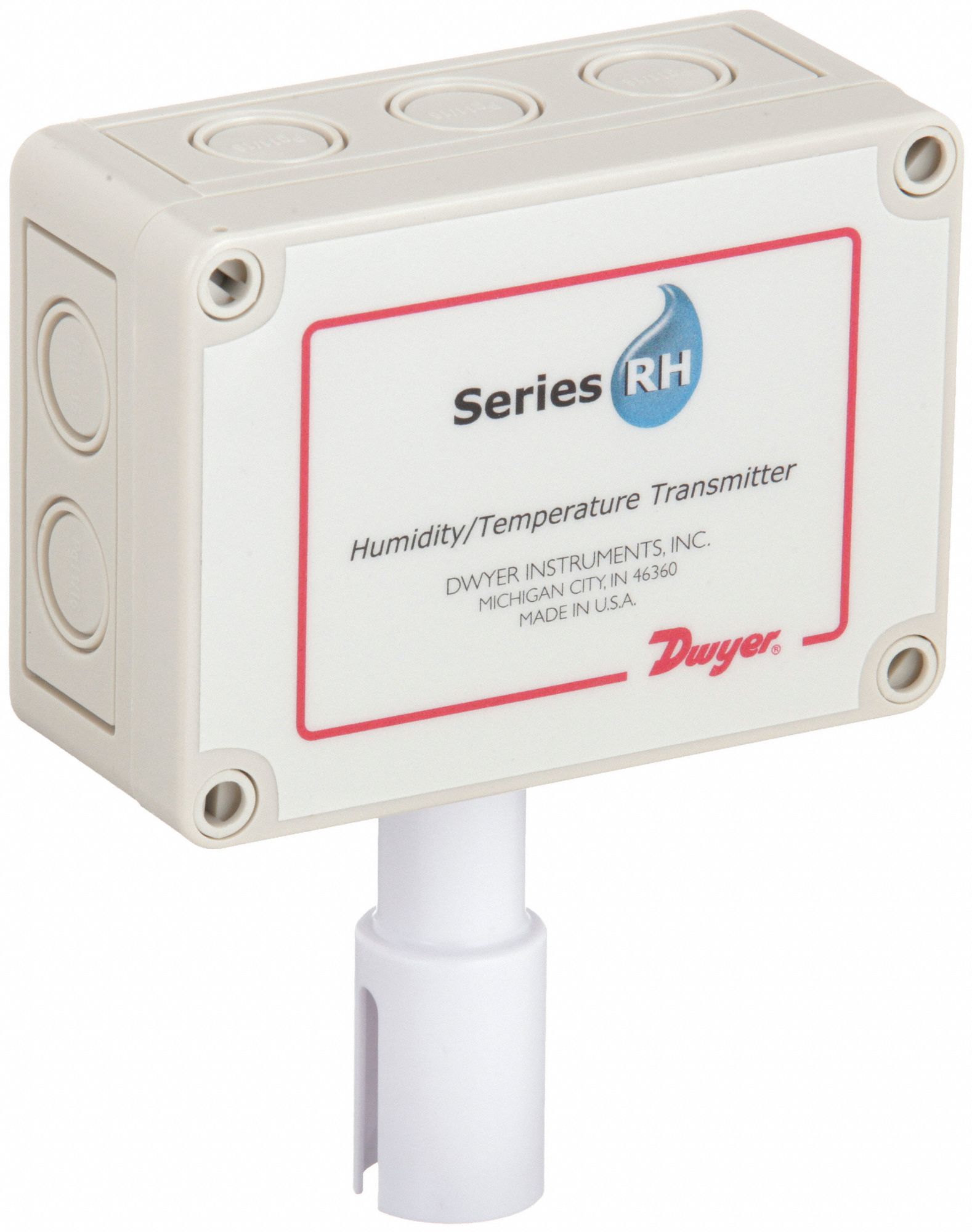

The Dwyer RHPX-3SSA0-00 is an outdoor surface-mount temperature and humidity transmitter with a 4 to 20mA output. It features an RTD or thermistor sensing element, operates on 10 to 35V DC power, and offers humidity accuracy of ±3% from 20 to 80% RH at 25°C. The device measures temperature from -4 °F to 140 °F and includes screw terminals with a 1/2 in NPS connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| NPS | 1/2 in |
| Type | RTD or Thermistor, Screw Terminals, RHP |
| Brand | DWYER |
| Output | 4 to 20mA |
| Power Source | 10 to 35V DC |
| Humidity Accuracy | ±3% 20 to 80% RH at 25°C |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | RTD or Thermistor |
| Manufacturer Part Number | RHPX-3SSA0-00 |
