Dwyer 3G-OTH-179164 — Spesifikasi Teknis

Name: Dwyer 3G-OTH-179164 DWYER Humidity Transmitters: 4 to 20mA, 40 to 20mA Solid State Band Gap, Screw Terminals, 1/2 in NPS (MPN RHPX-2SSA0-00). Key specifications — Brand: DWYER; Humidity Accuracy: ±2% 10 to 90% RH at 25°C; Sensing Element Type: 40 to 20mA Solid State Band Gap; Temperature Accuracy: ±0.9°F @ 77°F; Output: 4 to 20mA; Power Source: 10 to 35V DC; Temperature Range: -4 °F to 140 °F.
Brand: Dwyer

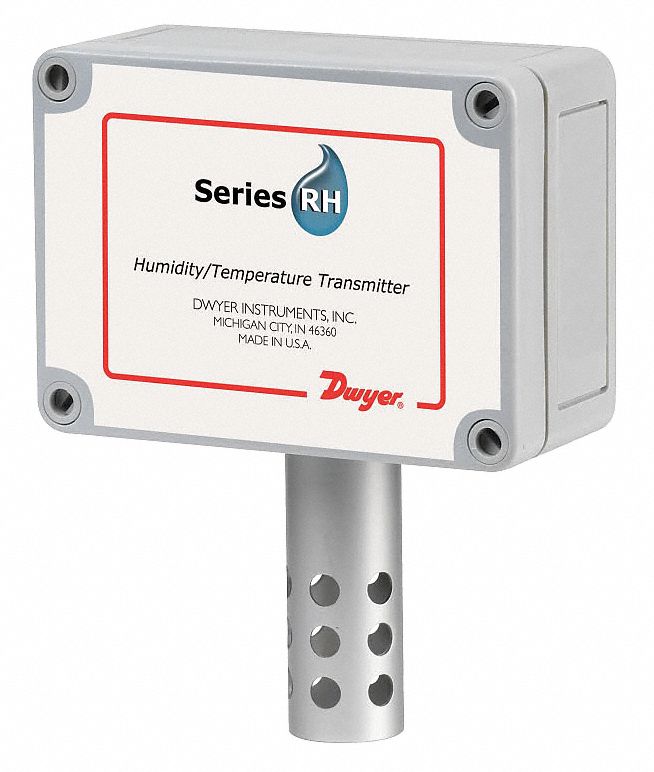

The Dwyer RHPX-2SSA0-00 is an outdoor surface-mount temperature and humidity transmitter with a 4 to 20mA output. It features a 40 to 20mA solid state band gap sensing element, powered by 10 to 35V DC, with a temperature range of -4 °F to 140 °F. Humidity accuracy is ±2% 10 to 90% RH at 25°C, and temperature accuracy is ±0.9°F @ 77°F.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
NPS	1/2 in
Type	Screw Terminals
Brand	DWYER
Output	4 to 20mA
Power Source	10 to 35V DC
Humidity Accuracy	±2% 10 to 90% RH at 25°C
Temperature Range	-4 °F to 140 °F
Sensing Element Type	40 to 20mA Solid State Band Gap
Solid State Band Gap	40 to 20mA
Temperature Accuracy	±0.9°F @ 77°F
Manufacturer Part Number	RHPX-2SSA0-00
