Dwyer 3G-OTH-179162 — Spesifikasi Teknis

Name: Dwyer 3G-OTH-179162 DWYER Humidity Transmitters: 0 to 10V DC, 0 to 10V DC Solid State Band Gap, Screw Terminals, RHP (MPN RHP-2O22). Key specifications — Brand: DWYER; Humidity Accuracy: ±2% 10 to 90% RH at 25°C; Sensing Element Type: 0 to 10V DC Solid State Band Gap; Temperature Accuracy: ±0.9°F @ 77°F; Output: 0 to 10V DC; Power Source: 15 to 29V AC; Temperature Range: -4 °F to 140 °F.
Brand: Dwyer

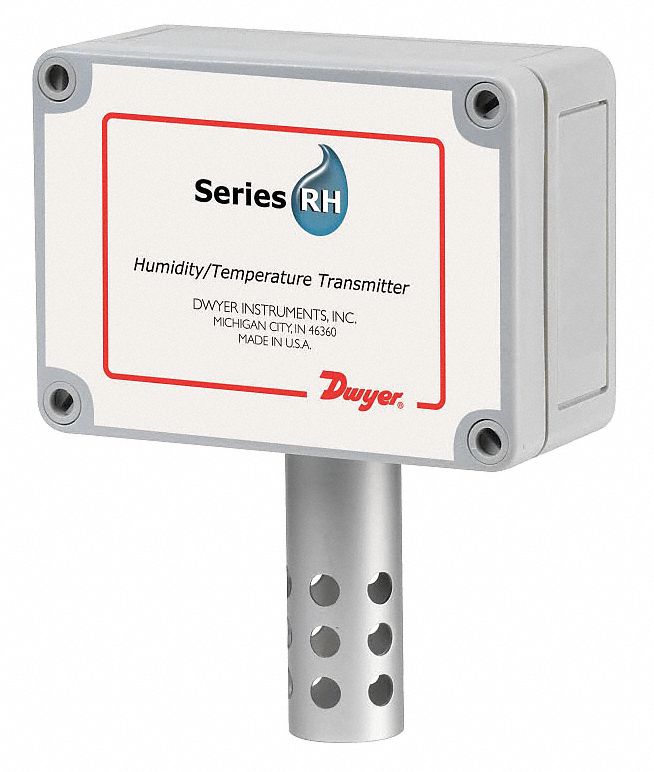

The Dwyer RHP-2O22 is an outdoor surface-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a 0 to 10V DC solid state band gap sensing element, providing humidity accuracy of ±2% from 10 to 90% RH at 25°C and temperature accuracy of ±0.9°F at 77°F. The unit operates on a 15 to 29V AC power source within a temperature range of -4°F to 140°F.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Screw Terminals, RHP
Brand	DWYER
Output	0 to 10V DC
Power Source	15 to 29V AC
Humidity Accuracy	±2% 10 to 90% RH at 25°C
Temperature Range	-4 °F to 140 °F
Sensing Element Type	0 to 10V DC Solid State Band Gap
Temperature Accuracy	±0.9°F @ 77°F
DC Solid State Band Gap	0 to 10V
Manufacturer Part Number	RHP-2O22
