Dwyer 3G-OTH-180769 — Spesifikasi Teknis

Name: Dwyer 3G-OTH-180769 DWYER Humidity/Temp Transducer: 0 to 10V DC, Pt100 RTD, Screw Terminals, 1/2 in NPS, 9 in Probe Lg (MPN RHP-3D2D). Key specifications — Brand: DWYER; Humidity Accuracy: 3%; Sensing Element Type: Pt100 RTD; Temperature Accuracy: ±0.54°F @ 32°F; Output: 0 to 10V DC; Power Source: 15 to 35V DC; 15 to 29V AC; Temperature Range: -4 °F to 140 °F.
Brand: Dwyer

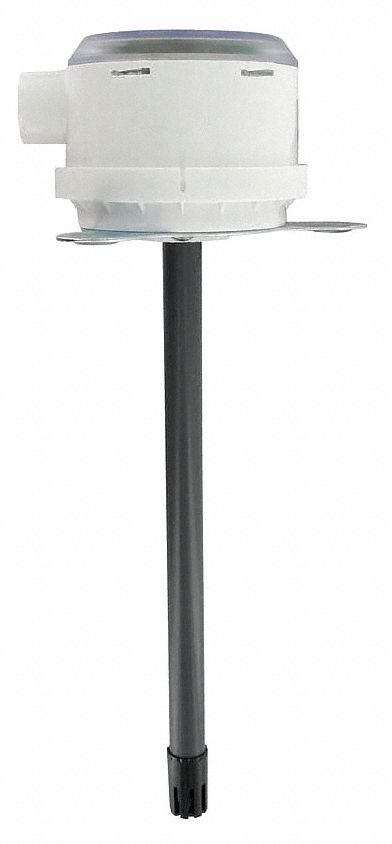

The Dwyer RHP-3D2D is a duct-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a Pt100 RTD sensing element, 3% humidity accuracy, and temperature accuracy of ±0.54°F @ 32°F over a -4 °F to 140 °F range. Powered by 15 to 35V DC or 15 to 29V AC, it includes screw terminals and a 9-inch probe with a 1/2 in NPS connection.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
NPS	1/2 in
Type	Pt100 RTD, Screw Terminals
Brand	DWYER
Output	0 to 10V DC
Probe Lg	9 in
Power Source	15 to 35V DC
Humidity Accuracy	3%
Temperature Range	-4 °F to 140 °F
Sensing Element Type	Pt100 RTD
Temperature Accuracy	±0.54°F @ 32°F
Manufacturer Part Number	RHP-3D2D
