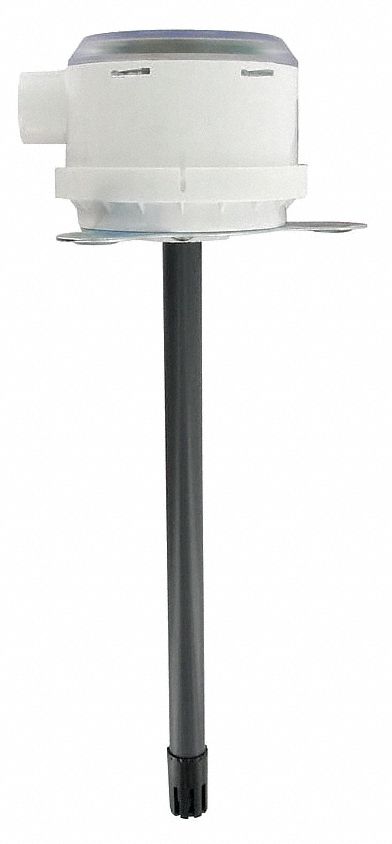

Dwyer 3G-OTH-180771 — Spesifikasi Teknis
The Dwyer RHPX-3SDAE-00 is a duct-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a Pt1000 RTD sensing element, a humidity accuracy of 3%, and a temperature accuracy of ±0.54°F @ 32°F. The device operates on a power source of 15 to 35V DC or 15 to 29V AC, with a temperature range of -4 °F to 140 °F, and includes screw terminals and a 9-inch probe.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| NPS | 1/2 in |
| Type | Pt1000 RTD, Screw Terminals |
| Brand | DWYER |
| Output | 0 to 10V DC |
| Probe Lg | 9 in |
| Power Source | 15 to 35V DC |
| Humidity Accuracy | 3% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Pt1000 RTD |
| Temperature Accuracy | ±0.54°F @ 32°F |
| Manufacturer Part Number | RHPX-3SDAE-00 |
