Dwyer 3G-OTH-180773 — Spesifikasi Teknis

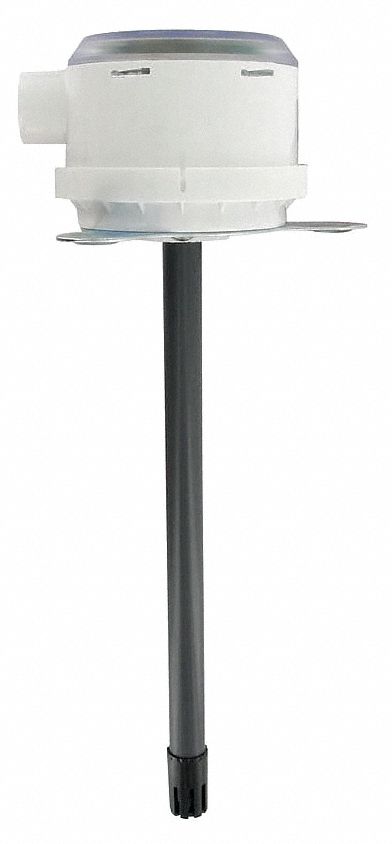

The Dwyer RHPX-3SDAF-00 is a duct-mount temperature and humidity transmitter with a 0 to 10V DC output. It features a thermistor (20K @ 25°C) sensing element, humidity accuracy of 3%, and temperature accuracy of ±0.36°F @ 77°F. The device operates on a power source of 15 to 35V DC or 15 to 29V AC, with a temperature range of -4 °F to 140 °F.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| NPS | 1/2 in |
| Type | Thermistor (20K @ 25°C), Screw Terminals |
| Brand | DWYER |
| Output | 0 to 10V DC |
| Power Source | 15 to 35V DC |
| Humidity Accuracy | 3% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Thermistor (20K @ 25°C) |
| Temperature Accuracy | ±0.36°F @ 77°F |
| Manufacturer Part Number | RHPX-3SDAF-00 |
