Dwyer 3G-OTH-180766 — Spesifikasi Teknis

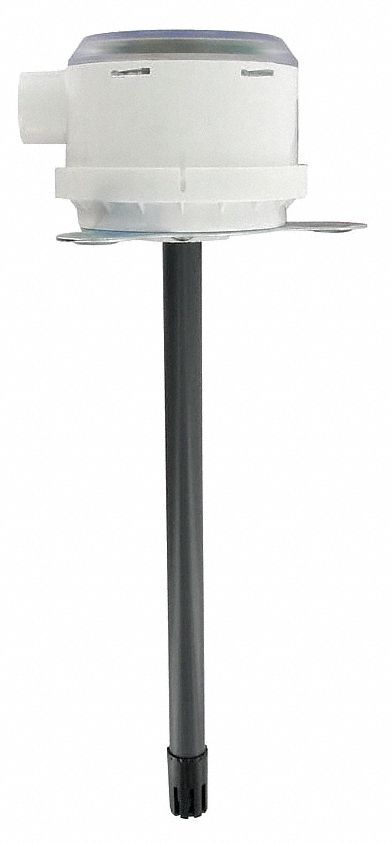

The Dwyer RHPX-2SDA0-00 is a duct-mount temperature and humidity transmitter with a 4 to 20mA DC output. It operates on a 10 to 35V DC power source, features a 0 to 5V DC solid state band gap sensing element, and offers a humidity accuracy of 2% and a temperature accuracy of ±0.9°F at 77°F. The device measures temperatures from -4 °F to 140 °F.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Screw Terminals, RHP |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Power Source | 10 to 35V DC |
| Humidity Accuracy | 2% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | 0 to 5V DC Solid State Band Gap |
| Temperature Accuracy | ±0.9°F at 77°F |
| DC Solid State Band Gap | 0 to 5V |
| Manufacturer Part Number | RHPX-2SDA0-00 |
