Dwyer 3G-OTH-180782 — Spesifikasi Teknis

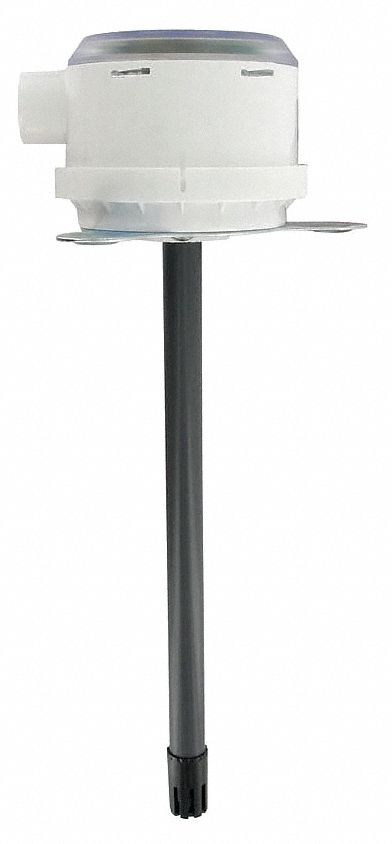

The Dwyer RHP-2D1B is a duct-mount temperature and humidity transmitter with a 4 to 20mA DC output. It features a Type II Thermistor (10K @ 25°C) sensing element, humidity accuracy of 2%, and temperature accuracy of ±0.36°F @ 77°F. The device operates on a 10 to 35V DC power source and measures temperatures from -4 °F to 140 °F.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Type II Thermistor (10K @ 25°C), Screw Terminals, RHP |
| Brand | DWYER |
| Output | 4 to 20mA DC |
| Power Source | 10 to 35V DC |
| Humidity Accuracy | 2% |
| Temperature Range | -4 °F to 140 °F |
| Sensing Element Type | Type II Thermistor (10K @ 25°C) |
| Temperature Accuracy | ±0.36°F @ 77°F |
| Manufacturer Part Number | RHP-2D1B |
