Dwyer 3G-OTH-28427 — Spesifikasi Teknis

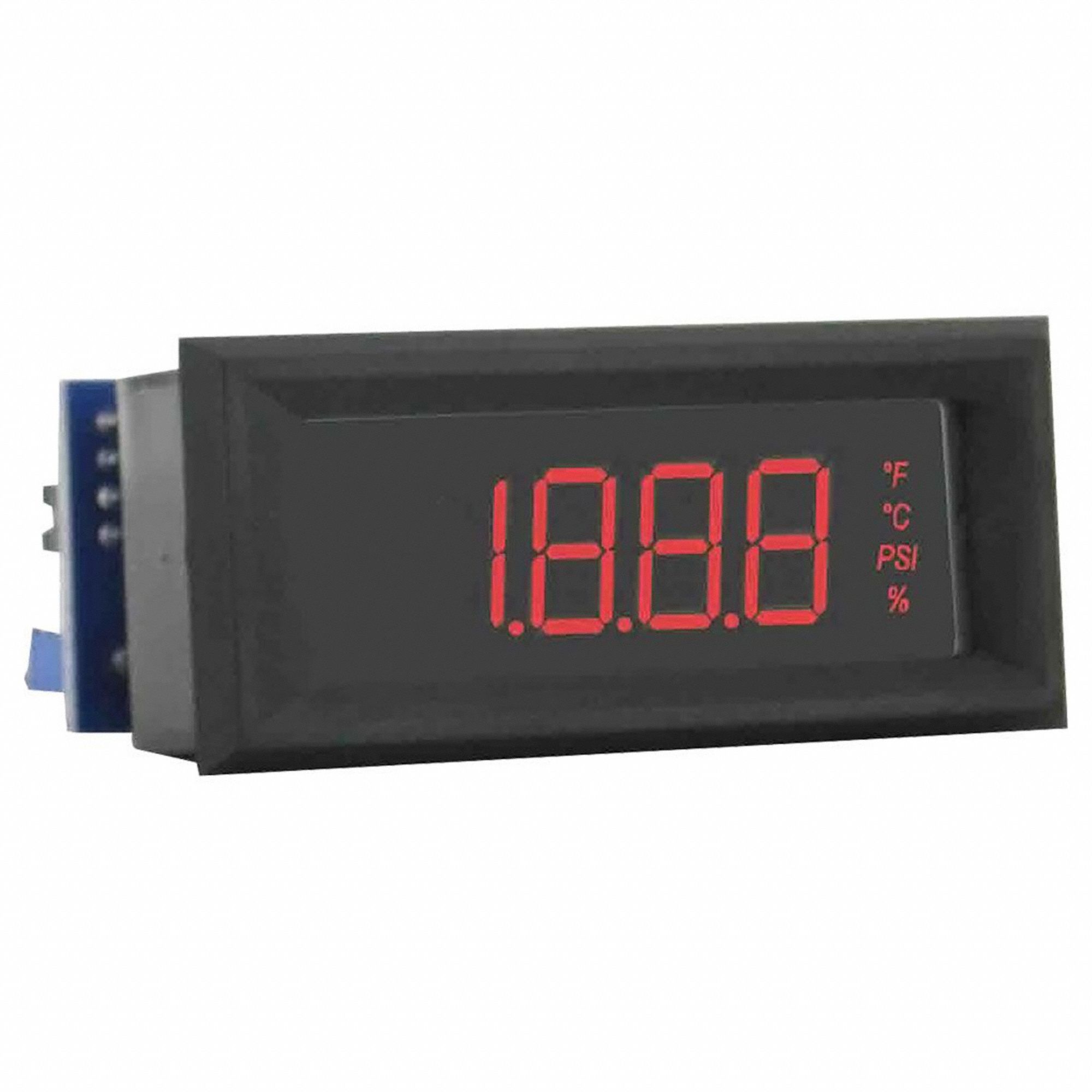

The Dwyer DPMP-403 is an LCD digital process meter from the DPMP series, featuring a red LCD display with 0.45-inch digit height and a 1,999 display span. It accepts DC current input, operates on 15–24 V DC power, and offers +/-0.1% accuracy. The meter includes screw-clamp terminal connections and carries a NEMA 4 enclosure rating.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | - Max, 15 V DC – 24 V DC, 0.45 in Digit Ht - Max., Red |
| Brand | DWYER |
| Series | DPMP |
| Accuracy | +/-0.1% |
| Input Type | DC Current |
| Product Type | LCD Digital Process Meter |
| NEMA Enclosure Rating | 4 |
| Manufacturer Part Number | DPMP-403 |
| Terminal Connection Type | Screw Clamp |
| Digital Display Screen Type | LCD |
| Digital Display Screen Color | Red |
