Eaton 3G-OTH-37109 — Spesifikasi Teknis

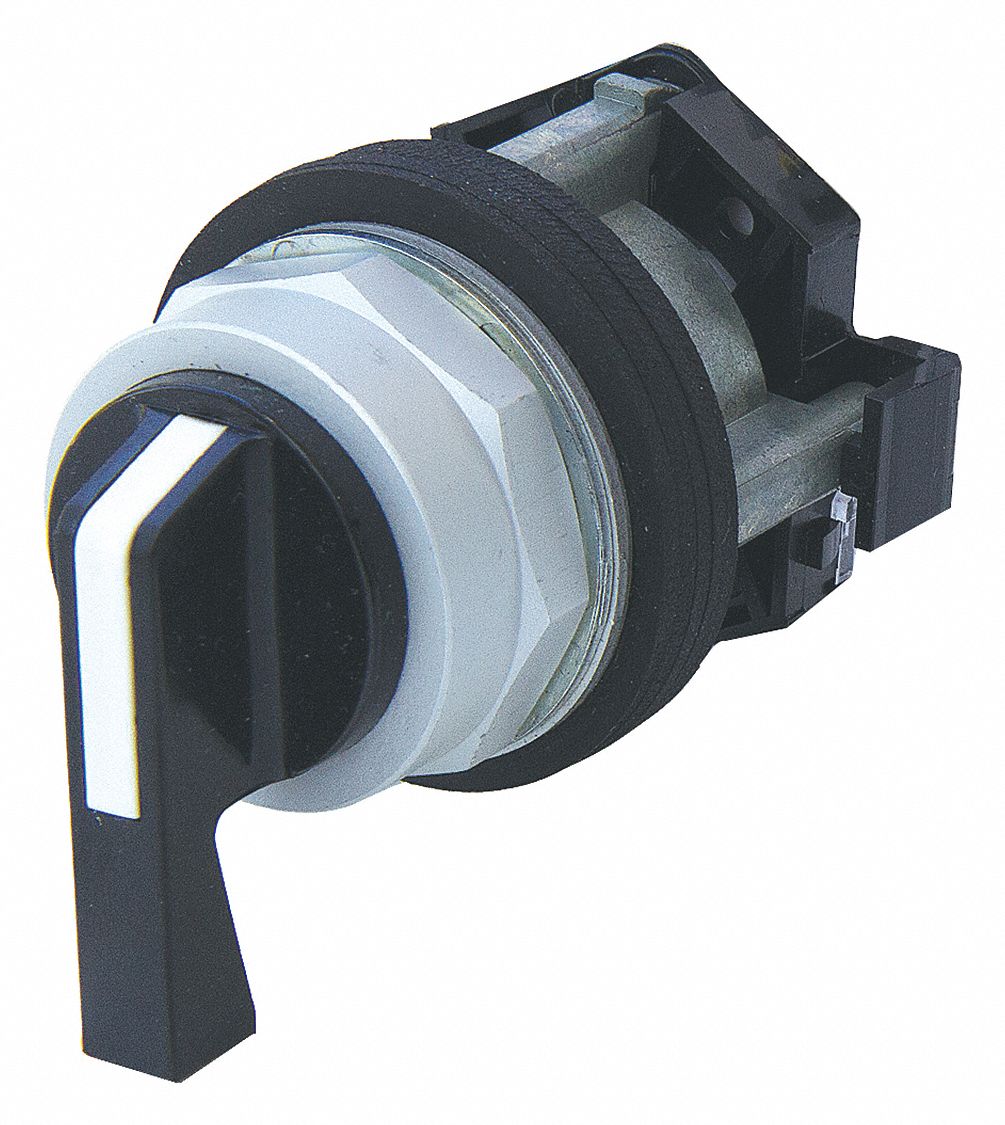

Name: Eaton 3G-OTH-37109 EATON Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Extended Lever, 1NO, Metallic (MPN HT8JLH3AA5). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Momentary/Maintained; Cam: 3A; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

The EATON HT8JLH3AA5 is a 30 mm panel-mount selector switch from the HT800 series, featuring a long-handled knob with a polymer operator head and metallic bezel. It offers momentary/maintained action with a 3A cam and two positions (Off/On), rated at 10 A @ 600 V AC and 5 A @ 250 V DC. This non-illuminated switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	3A
Type	Extended Lever, 1NO, Metallic
Brand	EATON
Action	Momentary/Maintained
Series	HT800
Positions	2
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JLH3AA5
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
