Eaton 3G-OTH-36657 — Spesifikasi Teknis

Name: Eaton 3G-OTH-36657 EATON Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Extended Lever, 2NC/2NO, Metallic (MPN HT8JDH3AF1Q1). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained; Cam: 3A; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

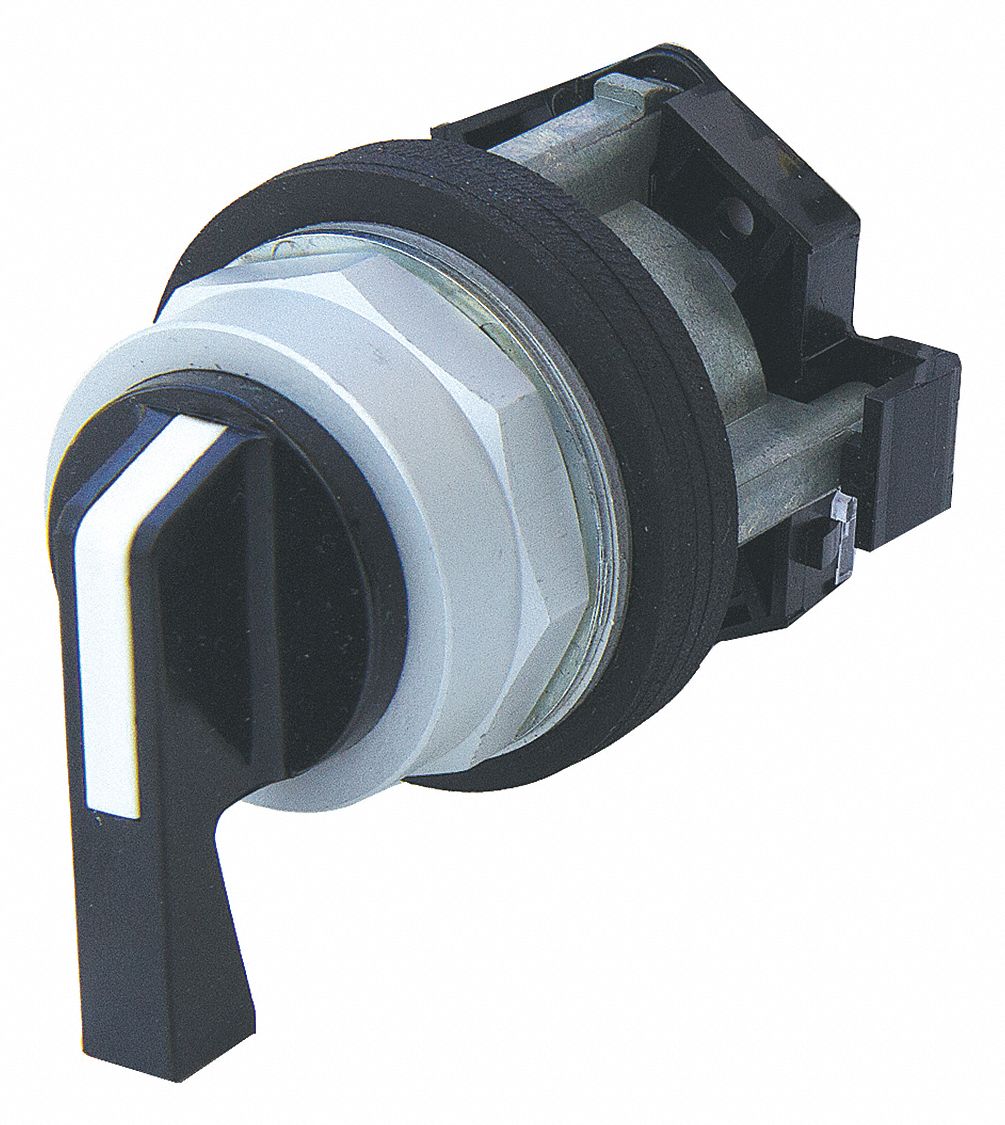

The EATON HT800 Series Selector Switch (MPN HT8JDH3AF1Q1) is a 30 mm panel-mounting, non-illuminated, long-handled knob operator with a polymer head and metallic bezel. It features a maintained/maintained action with a 3A cam, offering two positions (On/On) with 2NC/2NO contacts. Rated AC 10 A @ 600 V and DC 5 A @ 250 V, this switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	3A
Type	Extended Lever, 2NC/2NO, Metallic
Brand	EATON
Action	Maintained/Maintained
Series	HT800
Positions	2
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JDH3AF1Q1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
