Eaton 3G-OTH-35897 — Spesifikasi Teknis

Name: Eaton 3G-OTH-35897 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, 2NC/2NO, Metallic (MPN HT8JVH1DF1Q1). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Momentary; Cam: 1D; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

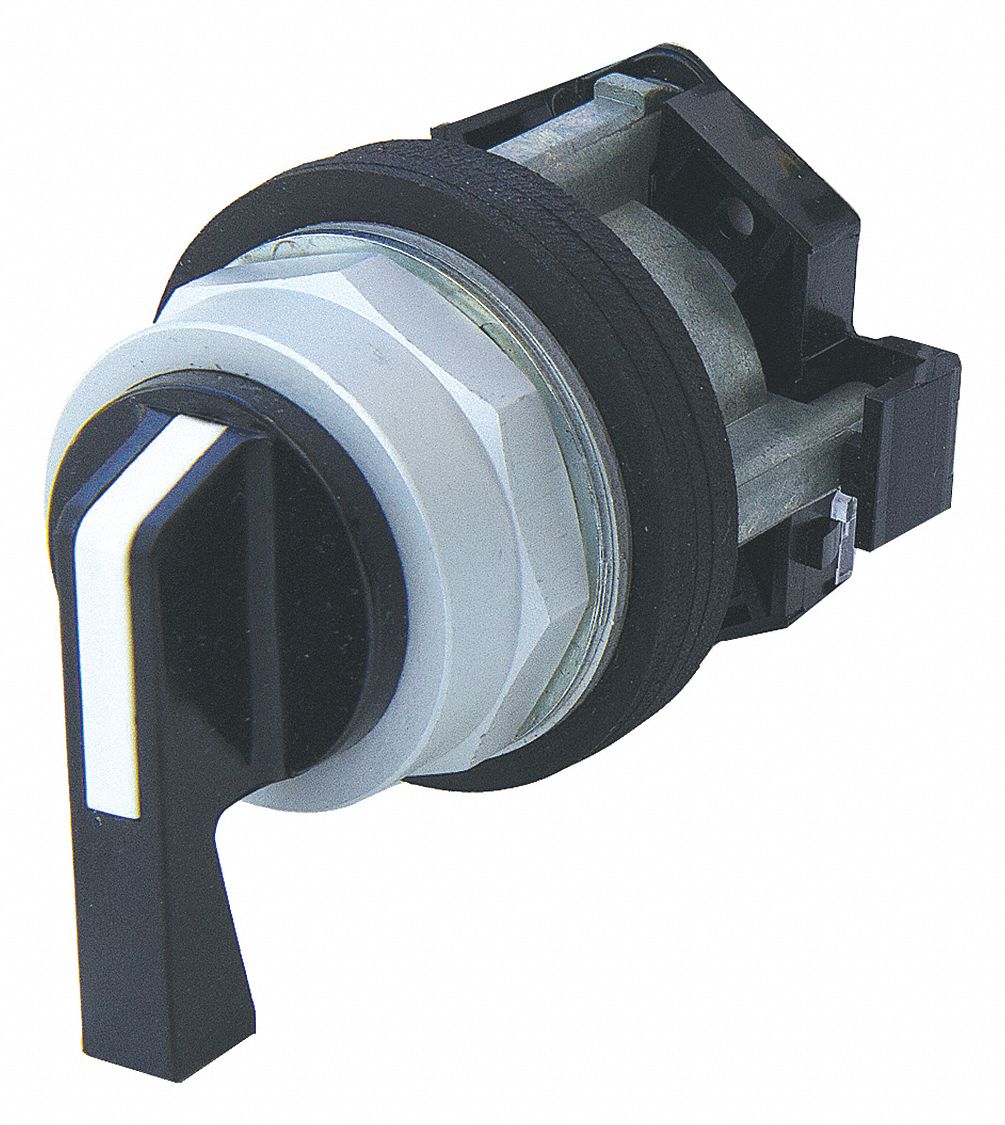

The EATON HT8JVH1DF1Q1 is a 30 mm panel-mount selector switch from the HT800 series, featuring a long-handled knob with a polymer operator head and a metallic bezel. It offers three positions with a maintained/maintained/momentary action and a 1D cam, providing AC contact ratings of 10 A @ 600 V and DC contact ratings of 5 A @ 250 V. This non-illuminated switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	1D
Type	Extended Lever, 2NC/2NO, Metallic
Brand	EATON
Action	Maintained/Maintained/Momentary
Series	HT800
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JVH1DF1Q1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
