Eaton 3G-OTH-35954 — Spesifikasi Teknis

Name: Eaton 3G-OTH-35954 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, 2NO/2NC, Metallic (MPN 10250T22LB). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: 3; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

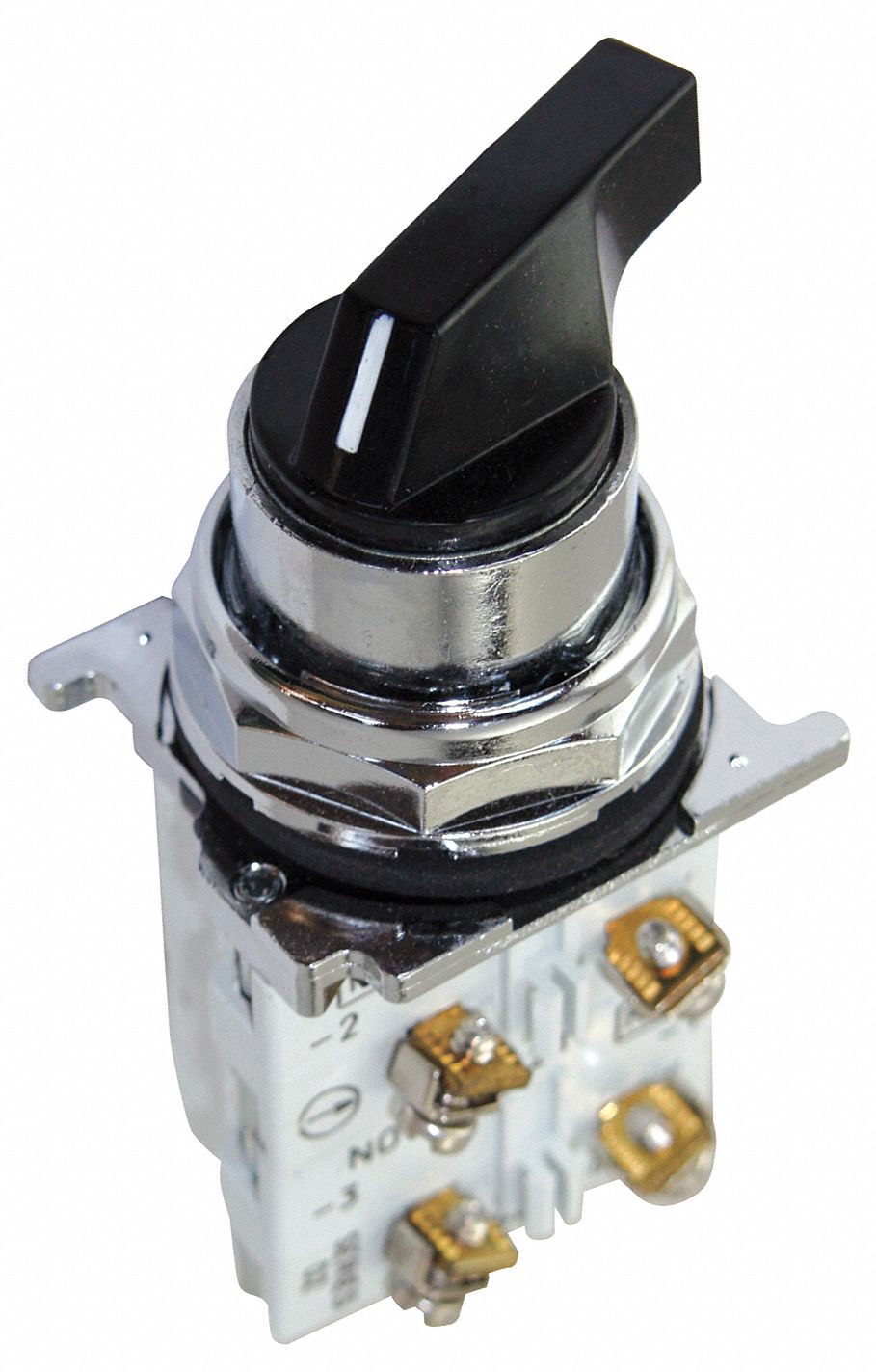

The EATON 10250T22LB is a 30 mm panel-mount selector switch from the 10250T Series, featuring a three-position maintained action with a long-handled polymer knob and a metallic bezel. It is rated for AC contacts at 10 A @ 600 V and DC contacts at 5 A @ 250 V, with a Cam 3 configuration and non-illuminated operation. This switch provides On/On/On functionality across its three positions and is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	3
Type	Extended Lever, 2NO/2NC, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained
Series	10250T
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	10250T22LB
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
