Eaton 3G-OTH-35178 — Spesifikasi Teknis

Name: Eaton 3G-OTH-35178 EATON Selector Switch: 30 mm Panel Mounting Size, 4 Positions, Extended Lever, 2NO/2NC, Metallic (MPN 10250ED1117-4LR). Key specifications — AC Contact Rating: 10 A @ 660 V; Action: Maintained/Maintained/Maintained/Maintained; Cam: 3; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Long-Handled Knob; Operator Illumination: Illuminated.
Brand: Eaton

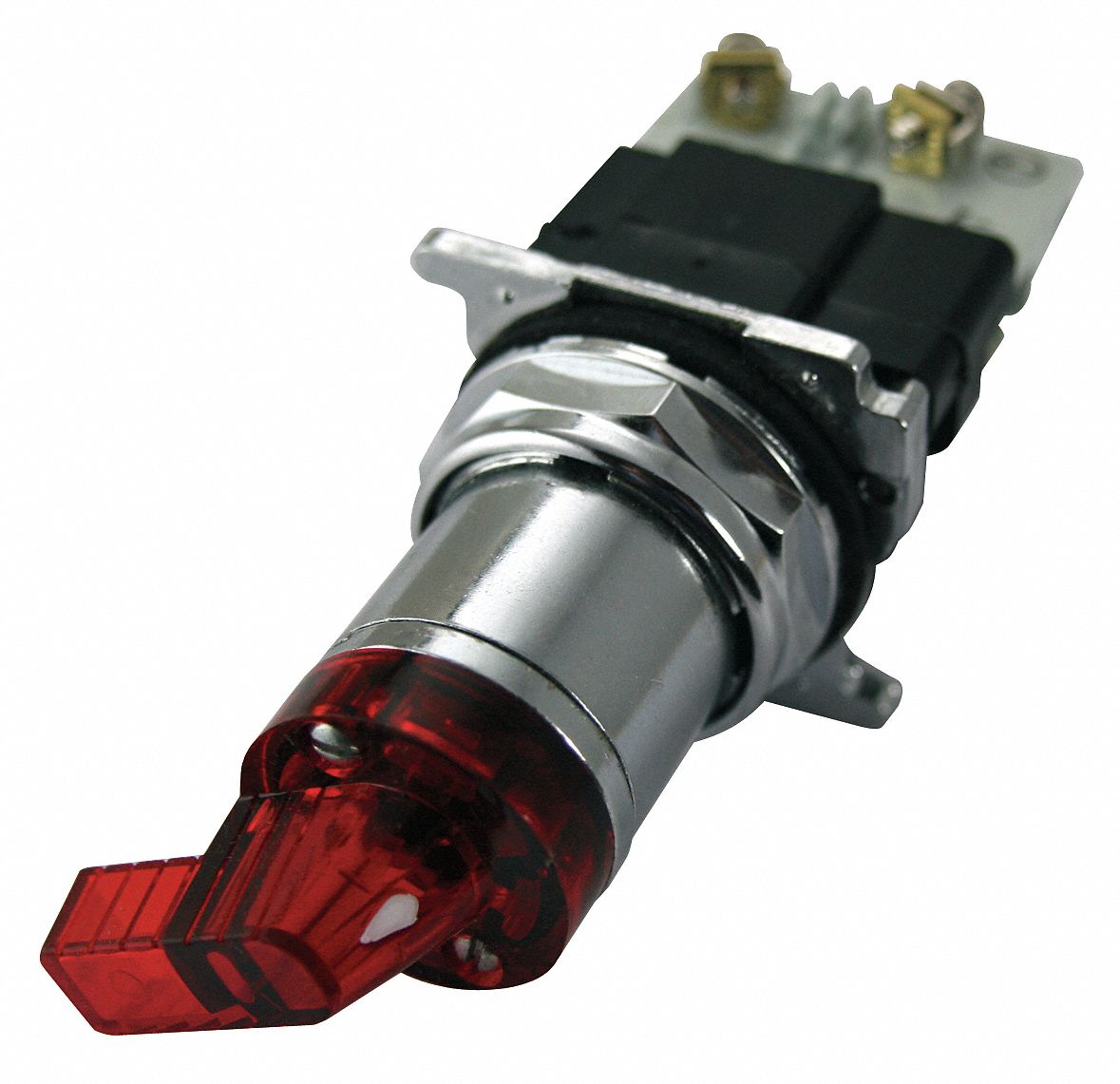

The EATON 10250ED1117-4LR is a 30 mm panel-mount illuminated selector switch from the 10250T series, featuring a long-handled knob and a polymer operator head with a metallic bezel. It offers four maintained positions (On/On/On/On) with a 3-cam action, and is rated for AC contacts at 10 A @ 660 V and DC contacts at 5 A @ 250 V. This switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	3
Type	Extended Lever, 2NO/2NC, Metallic
Brand	EATON
Action	Maintained/Maintained/Maintained/Maintained
Series	10250T
Positions	4
AC Contact Rating	10 A @ 660 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	10250ED1117-4LR
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	On
Hazardous Location Specification	Not Rated
