Eaton 3G-OTH-41098 — Spesifikasi Teknis

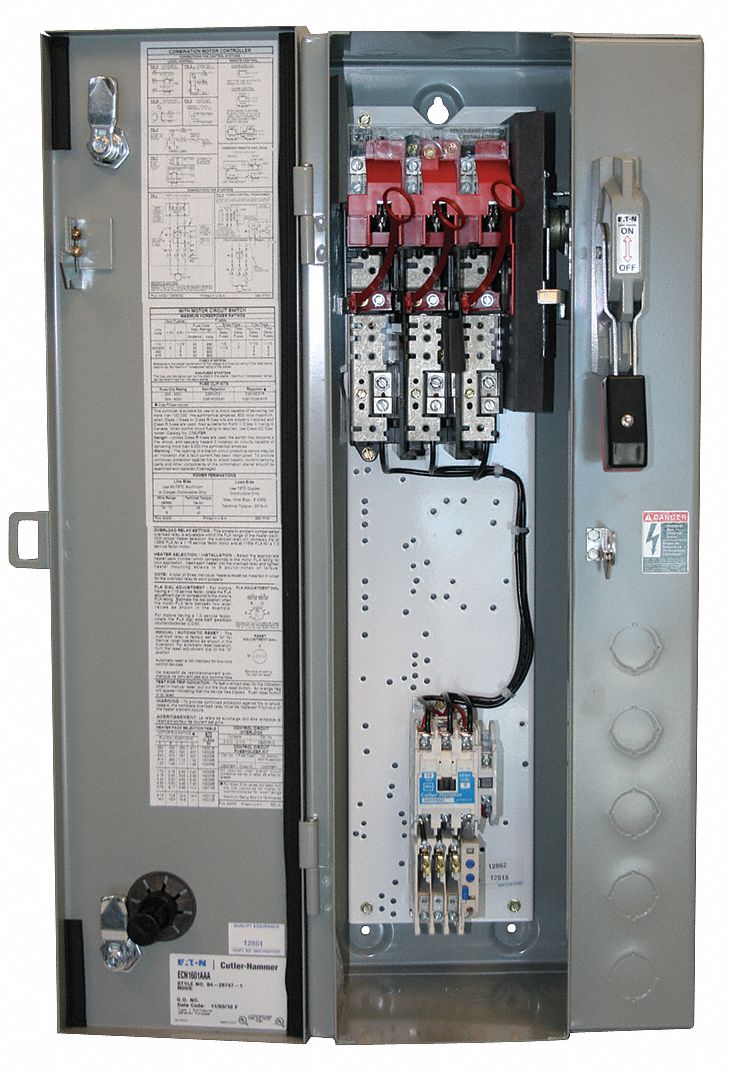

The EATON NEMA Combination Starter: Fusible Disconnect (MPN ECN16A2EAB-R63/B) is a three-phase fusible starter with an electronic overload, part of the Freedom series. It is a NEMA Size 0, NEMA-Rated 3R unit with a 208V AC coil voltage, 600V AC maximum voltage rating, and Class R fuse compatibility. This model includes auxiliary contacts and screw terminals, but does not include an operator, pilot light, or control transformer.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 208V |
| Type | NEMA Size 0, NEMA-Rated 3R |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| Series | Freedom |
| Poles/Phase | 3 Pole / Three Phase |
| Coil Voltage | 208V AC |
| Operator Type | No Operator |
| For Fuse Class | Class R |
| Control Transformer | No |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600V AC |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | ECN16A2EAB-R63/B |
| Terminal Connection Type | Screw Terminals |
| Includes Auxiliary Contacts | Yes |
