Eaton 3G-OTH-41288 — Spesifikasi Teknis

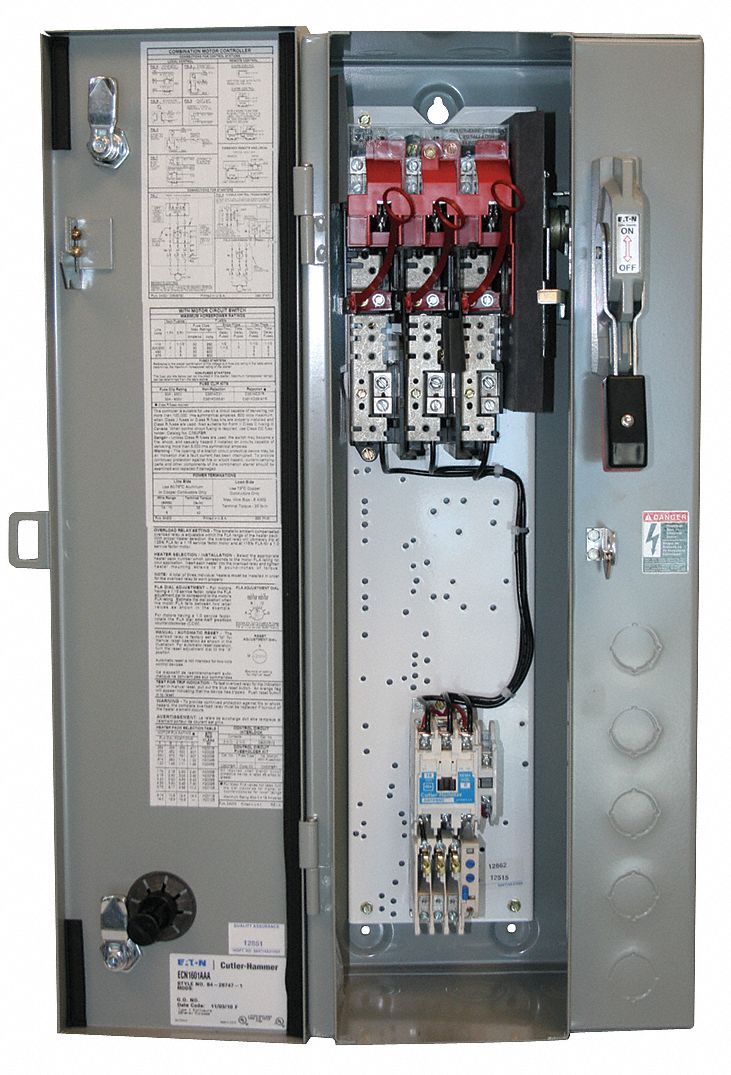

The EATON NEMA Combination Starter: Fusible Disconnect (MPN ECN1608EAB-R63/CL30) is a three-phase fusible starter with electronic overloads from the Freedom series. It features a 600V AC maximum voltage rating, 220/240V AC coil voltage, and is designed for Class R fuses. This unit includes a pilot light and auxiliary contacts, uses screw terminals, and requires no thermal units due to its electronic overload design.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 240V |
| Type | NEMA Size 1, NEMA-Rated 1 |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| Series | Freedom |
| Poles/Phase | 3 Pole / Three Phase |
| Coil Voltage | 220/240V AC |
| Operator Type | No Operator |
| For Fuse Class | Class R |
| Control Transformer | No |
| Includes Pilot Light | Yes |
| Maximum Voltage Rating | 600V AC |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | ECN1608EAB-R63/CL30 |
| Terminal Connection Type | Screw Terminals |
| Includes Auxiliary Contacts | Yes |
