Eaton 3G-OTH-41274 — Spesifikasi Teknis

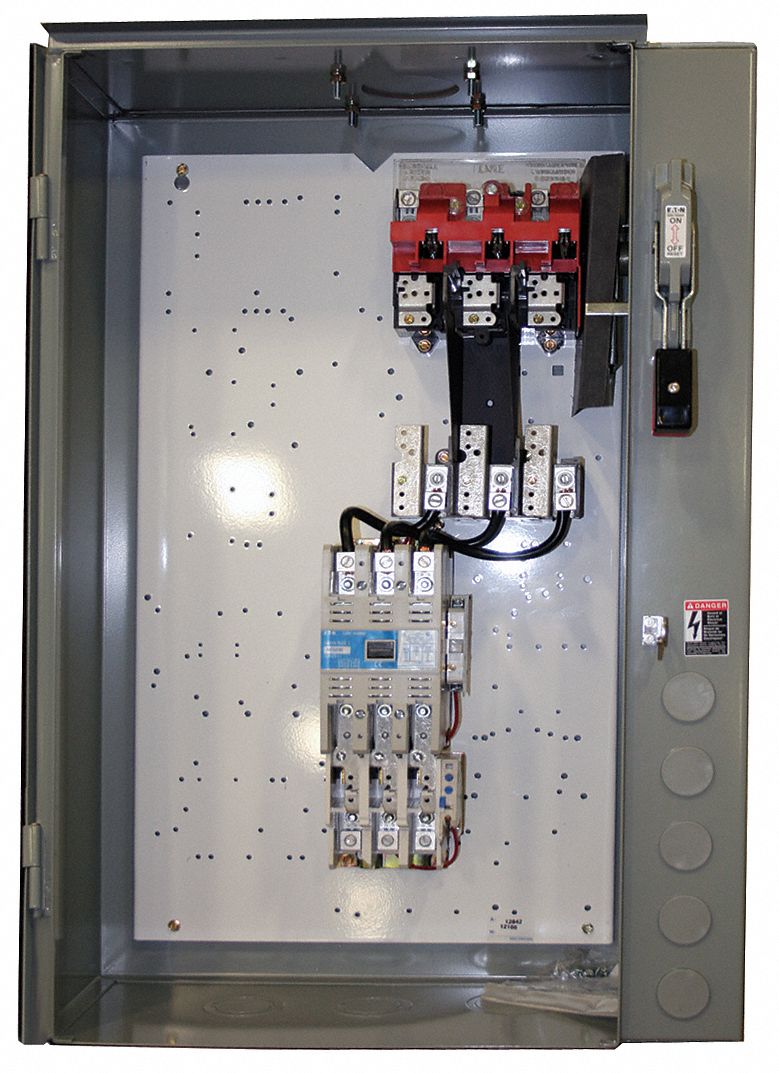

The EATON NEMA Combination Starter: Fusible Disconnect (SKU 40Z904, MPN ECN1631DAG-R63/EL30) is a three-phase fusible starter with electronic overloads from the Freedom series. It features 3 poles, a coil voltage of 110/120V AC, a maximum voltage rating of 600V AC, and is designed for Class R fuses. This unit includes screw terminals and auxiliary contacts, with no operator, pilot light, or control transformer.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 120V |
| Type | NEMA Size 0, NEMA-Rated 1 |
| Brand | EATON |
| Phase | Three |
| Poles | 3 |
| Series | Freedom |
| Poles/Phase | 3 Pole / Three Phase |
| Coil Voltage | 110/120V AC |
| Operator Type | No Operator |
| For Fuse Class | Class R |
| Control Transformer | No |
| Includes Pilot Light | No |
| Maximum Voltage Rating | 600V AC |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | ECN1631DAG-R63/EL30 |
| Terminal Connection Type | Screw Terminals |
| Includes Auxiliary Contacts | Yes |
