Eaton 3G-OTH-42683 — Spesifikasi Teknis

Name: Eaton 3G-OTH-42683 EATON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity, Frame Size A (MPN XTOMP24AC1). Key specifications — Brand: EATON; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: XT Mini Contactors; Frame Size: A; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Frame Size A.
Brand: Eaton

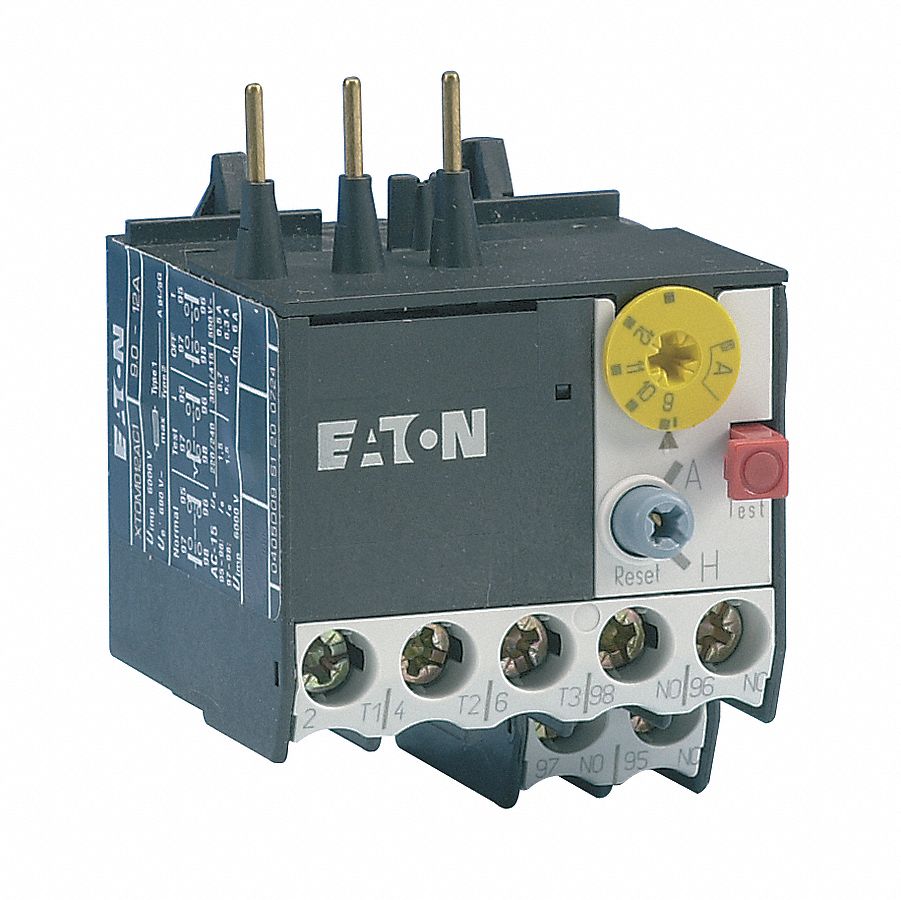

The EATON Overload Relay: Thermal Protection (MPN XTOMP24AC1) is an IEC thermal overload relay in Frame Size A, designed for use with EATON XT Mini Contactors of the same frame size. It features 1NO/1NC auxiliary contacts, phase loss sensitivity, and integrated bimetallic elements, eliminating the need for separate thermal units.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1NO/1NC, Phase Loss Sensitivity, Frame Size A
Brand	EATON
Poles	3
Frame Size	A
Compatible Contactors	Frame Size A
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	XTOMP24AC1
Compatible Contactor Series	XT Mini Contactors
