Eaton 3G-OTH-22916 — Spesifikasi Teknis

Name: Eaton 3G-OTH-22916 EATON Surge Protection Device: Three Phase, 120/208V AC Wye, 1000V (L-L)/600V (L-N), 120/208 V (MPN SP1-208Y). Key specifications — Voltage: 120/208V AC Wye; Max. Continuing Operating Voltage: 120/208 V; Voltage Protection Rating: 1000V (L-L); Enclosure Material: Advanced Polymer; Enclosure NEMA Rating: NEMA 4; Max. Surge Current per Mode: 50 kA; Brand: EATON.
Brand: Eaton

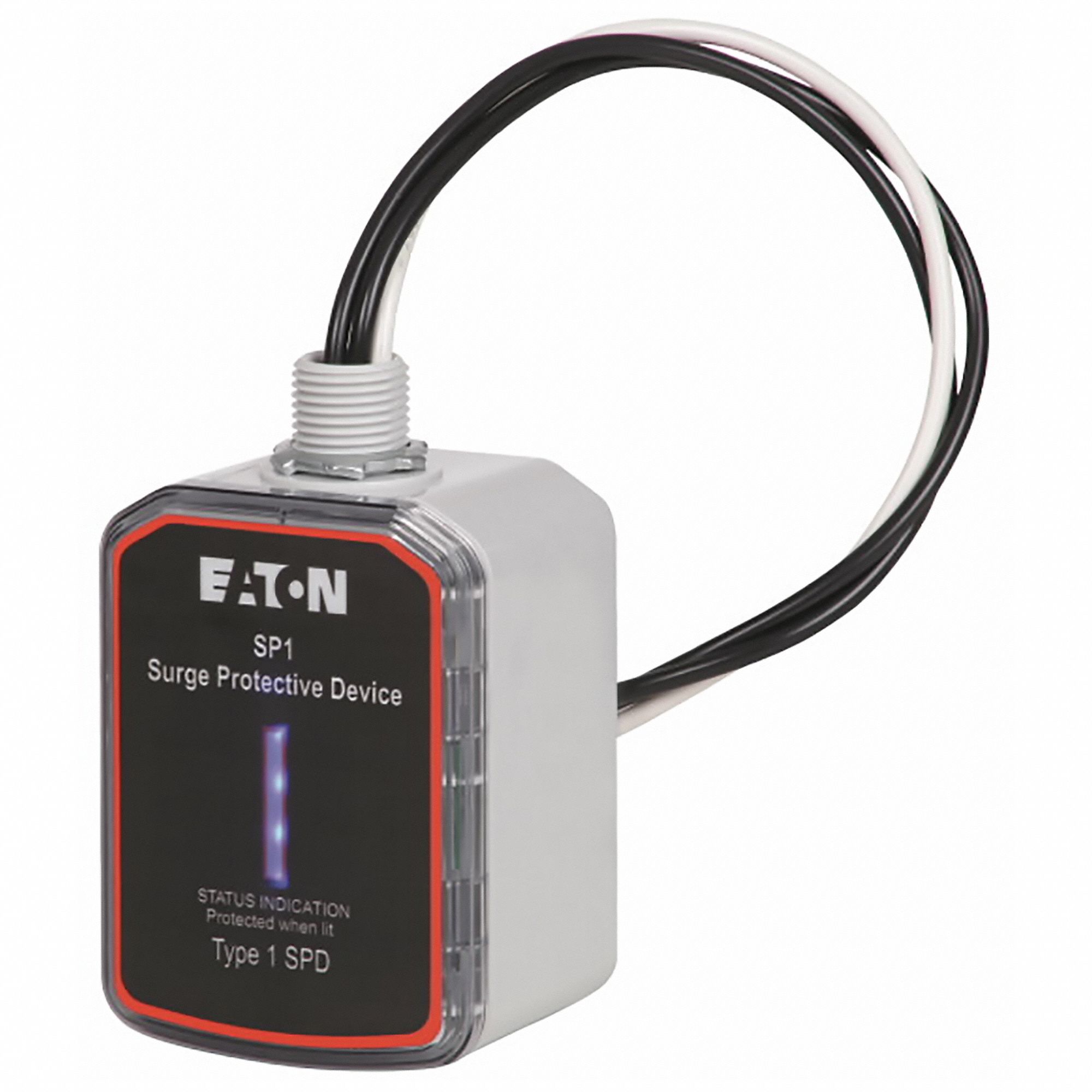

The EATON SP1-208Y is a three-phase Chase-Nipple External-Mount Surge Protection Device (SPD) from EATON, designed for 120/208V AC Wye systems. It features a Max. Surge Current per Mode of 50 kA, a Voltage Protection Rating of 1000V (L-L), and a Max. Continuing Operating Voltage of 120/208 V. The unit is housed in an Advanced Polymer enclosure with a NEMA 4 rating.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1000V (L-L)/600V (L-N), 120/208 V
Brand	EATON
AC Wye	120/208V
Voltage	120/208V AC Wye
Enclosure Material	Advanced Polymer
Enclosure NEMA Rating	NEMA 4
Manufacturer Part Number	SP1-208Y
Voltage Protection Rating	1000V (L-L)
Max. Surge Current Per Mode	50 kA
Max. Continuing Operating Voltage	120/208 V
