Eaton 3G-OTH-22712 — Spesifikasi Teknis

Name: Eaton 3G-OTH-22712 EATON Surge Protection Device: Two Phase, 240V AC, 2 Poles, 2 + Ground Wires, L-G/L-N/N-G, 240 V AC (MPN AGDN24020R). Key specifications — Voltage: 240V AC; Number of Wires: 2 Wires + Ground; Phase: Two; Modes of Protection: L-G; Max. Continuing Operating Voltage: 240 V AC; Voltage Protection Rating: 1500V (L-L, L-G, N-G); Short Circuit Current Rating: 150 kA; Filtering: No.
Brand: Eaton

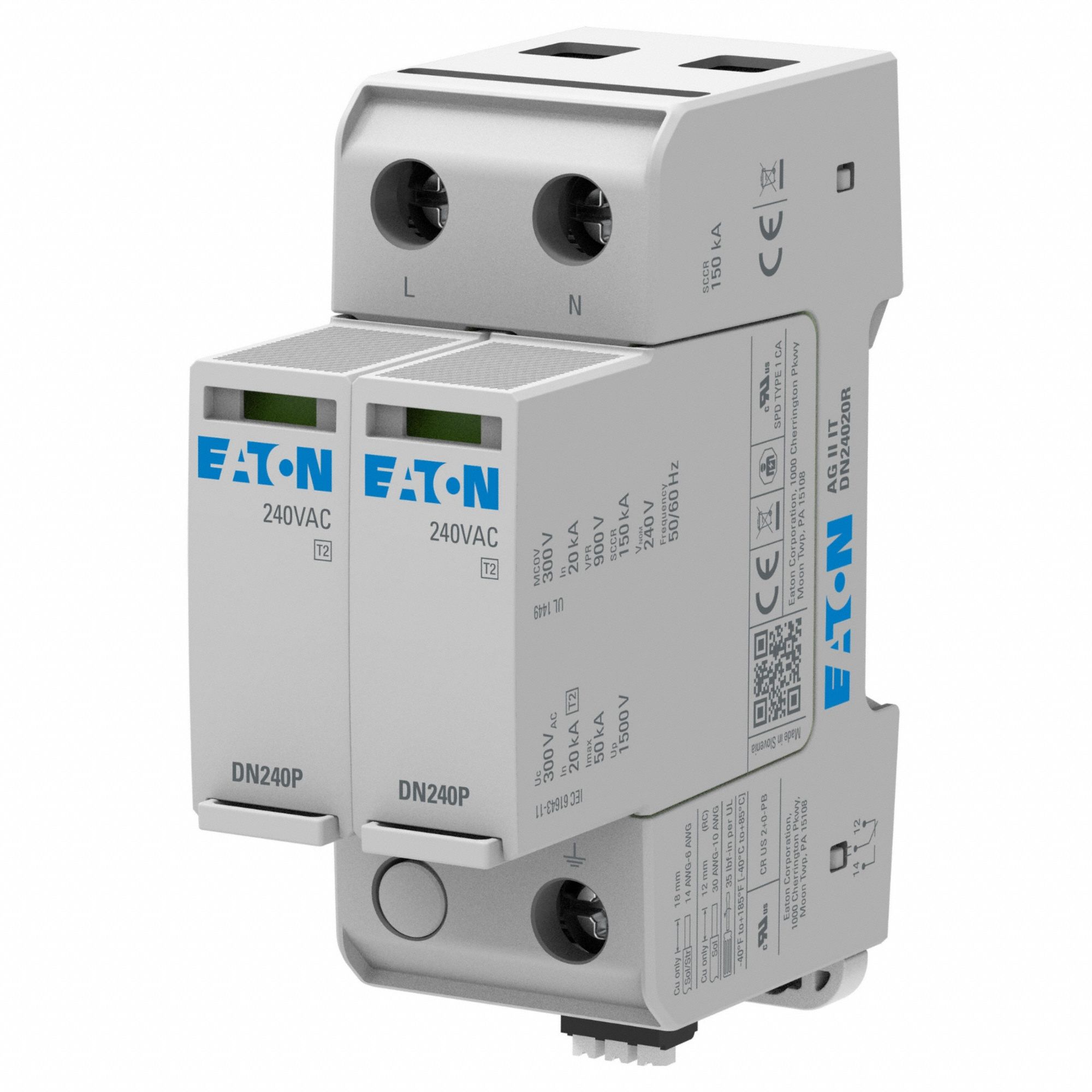

The EATON AGDN24020R is a two-phase, DIN Rail internal-mount surge protective device (SPD) for panelboard mounting. It operates on 240V AC with 2 wires plus ground, providing L-G mode protection and a voltage protection rating of 1500V (L-L, L-G, N-G). The unit includes alarm contacts and has a short-circuit current rating of 150 kA, with a maximum continuous operating voltage of 240V AC.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	240V
Type	2 + Ground Wires, L-G/L-N/N-G
Brand	EATON
Phase	Two
Poles	2
Voltage	240V AC
Includes	Alarm Contacts
Filtering	No
Mounting Style	Panelboard
Number Of Wires	2 Wires + Ground
Modes Of Protection	L-G
Manufacturer Part Number	AGDN24020R
Voltage Protection Rating	1500V (L-L, L-G, N-G)
Short Circuit Current Rating	150 kA
Max. Continuing Operating Voltage	240 V AC
