Eaton 3G-OTH-22741 — Spesifikasi Teknis

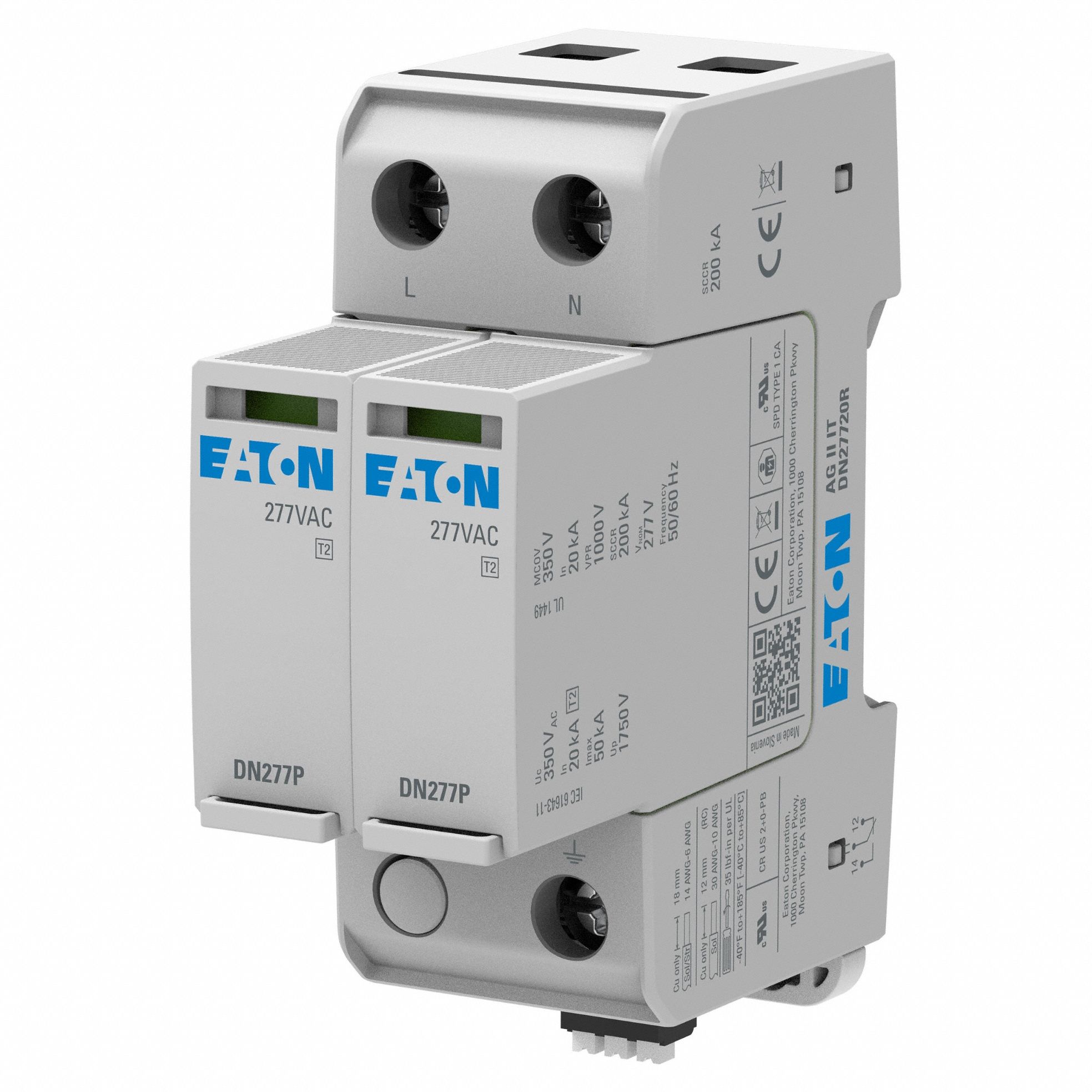

Name: Eaton 3G-OTH-22741 EATON Surge Protection Device: Two Phase, 277V AC, 2 Poles, 2 + Ground Wires, L-G/L-N/N-G, 277 V AC (MPN AGDN27720R). Key specifications — Voltage: 277V AC; Number of Wires: 2 Wires + Ground; Phase: Two; Modes of Protection: L-G; Max. Continuing Operating Voltage: 277 V AC; Voltage Protection Rating: 1500V (L-L, L-G, N-G); Short Circuit Current Rating: 200 kA; Filtering: No.
Brand: Eaton

The EATON AGDN27720R is a two-phase, DIN Rail internal-mount surge protective device (SPD) for panelboard mounting, operating at 277V AC with 2 wires plus ground. It provides L-G mode protection with a voltage protection rating of 1500V (L-L, L-G, N-G) and a short circuit current rating of 200 kA. The unit includes alarm contacts and has a maximum continuous operating voltage of 277V AC.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	277V
Type	2 + Ground Wires, L-G/L-N/N-G
Brand	EATON
Phase	Two
Poles	2
Voltage	277V AC
Includes	Alarm Contacts
Filtering	No
Mounting Style	Panelboard
Number Of Wires	2 Wires + Ground
Modes Of Protection	L-G
Manufacturer Part Number	AGDN27720R
Voltage Protection Rating	1500V (L-L, L-G, N-G)
Short Circuit Current Rating	200 kA
Max. Continuing Operating Voltage	277 V AC
