Eaton 3G-OTH-22679 — Spesifikasi Teknis

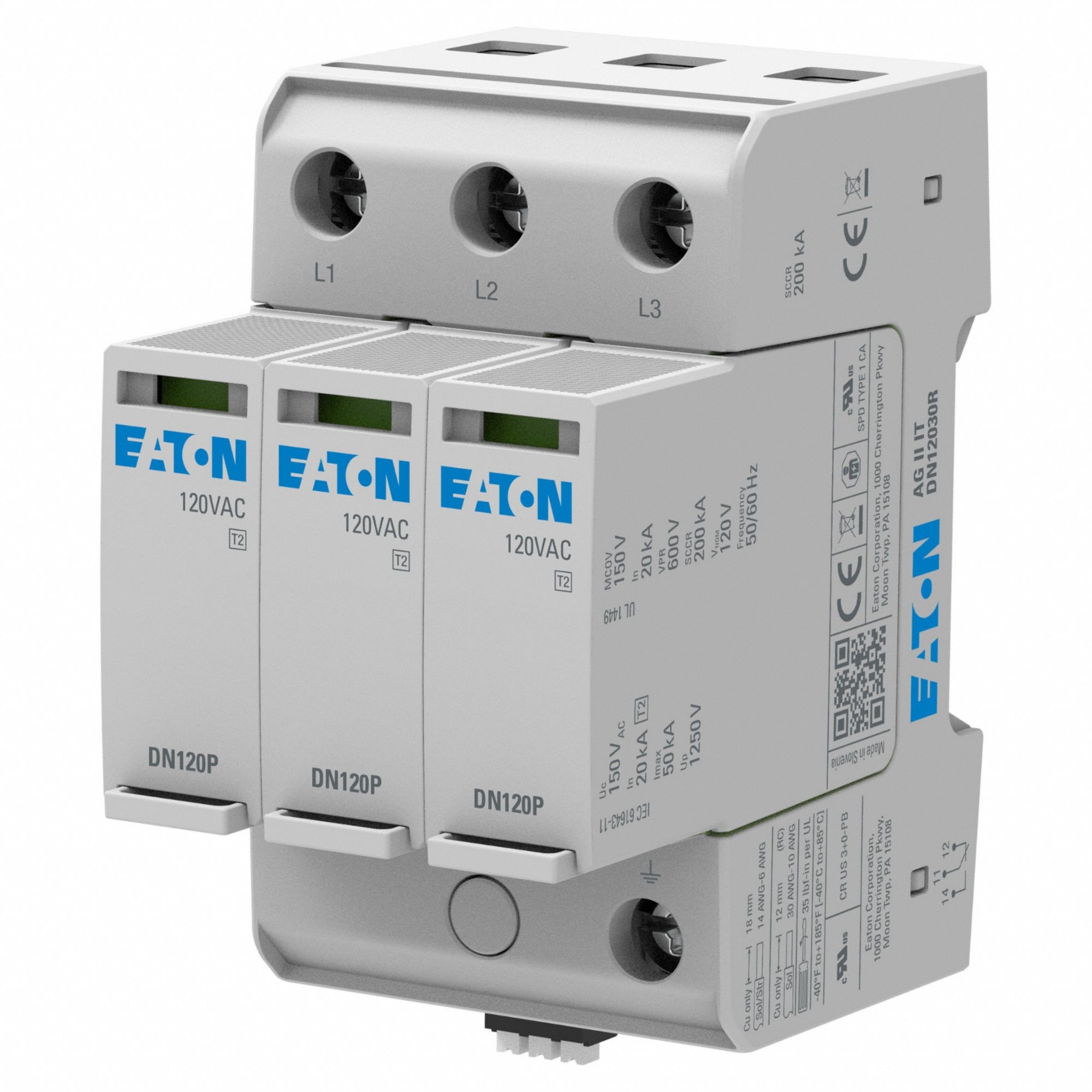

Name: Eaton 3G-OTH-22679 EATON Surge Protection Device: Three Phase, 120V AC Delta, 3 Poles, 3 + Ground Wires, L-G/L-N/N-G (MPN AGDN12030R). Key specifications — Voltage: 120V AC Delta; Number of Wires: 3 Wires + Ground; Modes of Protection: L-G; Max. Continuing Operating Voltage: 120 V AC; Voltage Protection Rating: 1500V (L-L, L-G); Short Circuit Current Rating: 200 kA; Filtering: No; Includes: Alarm Contacts.
Brand: Eaton

The EATON AGDN12030R is a three-phase surge protection device (SPD) designed for DIN rail internal-mount panelboard applications. It operates on a 120V AC Delta system with 3 wires plus ground, providing L-G mode protection and a voltage protection rating of 1500V (L-L, L-G). This unit includes alarm contacts, has a maximum continuous operating voltage of 120 V AC, and a short circuit current rating of 200 kA.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	3 + Ground Wires, L-G/L-N/N-G
Brand	EATON
Poles	3
Voltage	120V AC Delta
AC Delta	120V
Includes	Alarm Contacts
Filtering	No
Mounting Style	Panelboard
Number Of Wires	3 Wires + Ground
Modes Of Protection	L-G
Manufacturer Part Number	AGDN12030R
Voltage Protection Rating	1500V (L-L, L-G)
Short Circuit Current Rating	200 kA
Max. Continuing Operating Voltage	120 V AC
