Ezo 3G-OTH-108453 — Spesifikasi Teknis

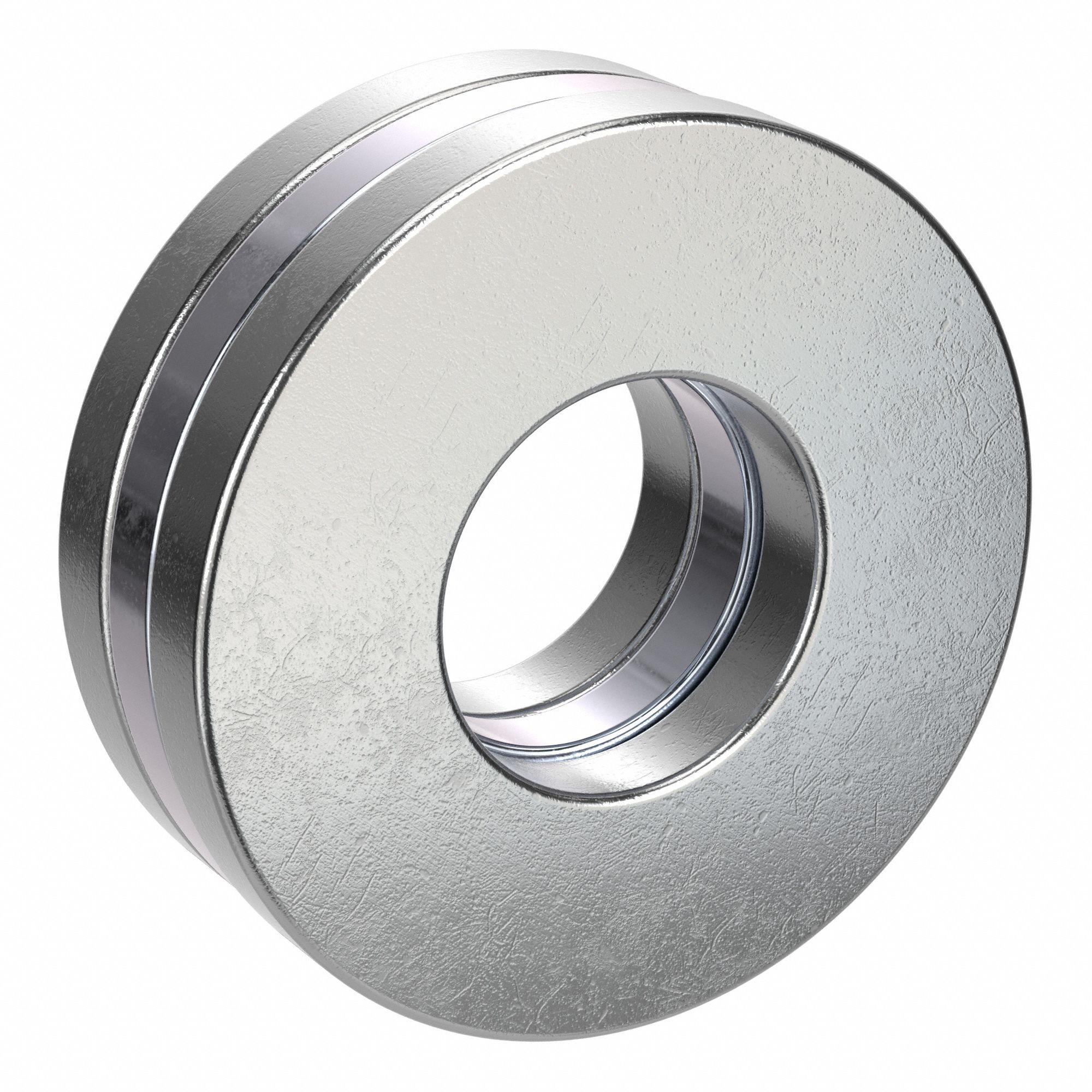

The EZO F6-14M is a separable grooved-race ball thrust bearing from the FM Series, featuring a 6 mm bore diameter, 14 mm outside diameter, and 5 mm overall width. It is constructed with SUJ2 ball material grade and has a maximum speed of 12,000 RPM with grease lubrication.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Grooved, Steel |
| Brand | EZO |
| Bore Dia | 6 mm |
| Overall Wd | 5 mm |
| Outside Dia | 14 mm |
| Maximum Speed | 12,000 RPM Grease |
| Bearing Series | FM Series |
| Ball Material Grade | SUJ2 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Metric |
| Bearing Industry Number | F6-14M |
| Manufacturer Part Number | F6-14M |
