Field Controls 3G-OTH-78048 — Spesifikasi Teknis

Name: Field Controls 3G-OTH-78048 Motorized Damper: For 7 in Dia, 7 1/8 in L, 11 7/8 in H, 11 7/8 in W, Crimped/Slip-Over, Single (MPN FCD-7). Key specifications — Nameplate Voltage: 24V AC; Blade Seal Material: Rubber; Blade Type: Flat Blade; Brand: FIELD CONTROLS; Maximum Air Velocity: 1,000 fpm; Switch Action: Normally Closed; Includes: Fresh Command Multi-Family Control (FCMC).
Brand: Field Controls

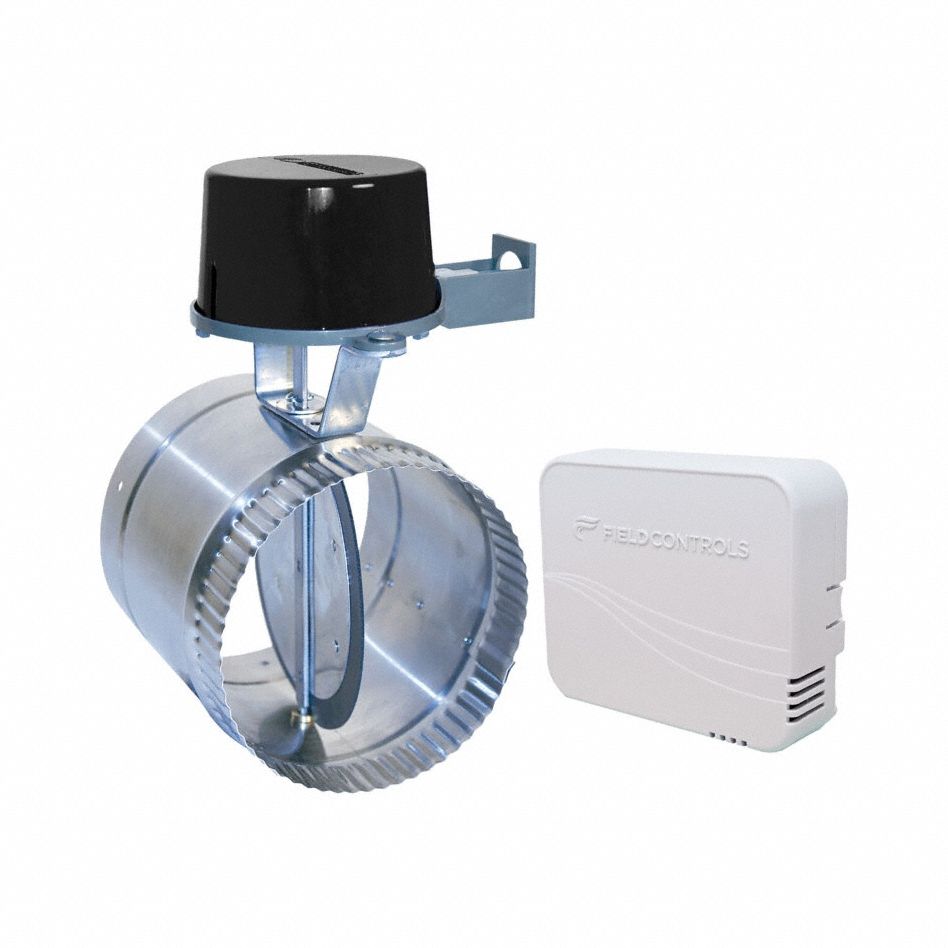

The FIELD CONTROLS FCD-7 is a 7-inch diameter motorized fresh air intake damper with a flat blade and rubber blade seal. It operates on 24V AC with a normally closed switch action and a maximum air velocity of 1,000 fpm. This unit includes the Fresh Command Multi-Family Control (FCMC) and features a crimped/slip-over design with dimensions of 7 1/8 in L, 11 7/8 in H, and 11 7/8 in W.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
H	11 7/8 in
Type	7 1/8 in L, 11 7/8 in W, Crimped/Slip-Over, Single
Brand	FIELD CONTROLS
Includes	Fresh Command Multi-Family Control (FCMC)
Blade Type	Flat Blade
Switch Action	Normally Closed
Nameplate Voltage	24V AC
Blade Seal Material	Rubber
Maximum Air Velocity	1,000 fpm
Manufacturer Part Number	FCD-7
